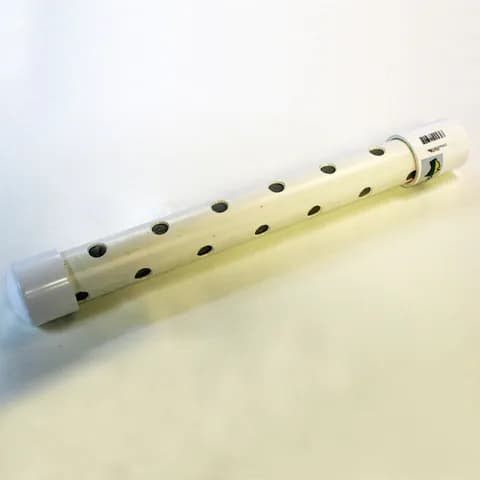

Digital Piezometer
This is a Casagrande-tip standpipe piezometer for boreholes and observation wells, built…
- Dimensions
- 40.6 mm O.D. x 345 mm
- Filter material
- Spun nylon, 70 micron pore diameter
Find what you need to measure with
Instruments, loggers, systems, accessories and software — by name, part number or what you’re measuring.
10 products matching “piezometer”
Showing 10 of 10
PS-6400A Piezometer / Water Pressure Level Sensor 4-20mA
The PS-6400A is a fully sealed piezometer / submersible water level sensor with a ceramic…
- Output signal
- 4-20 mA
- Sensing element
- Piezo-resistive silicon pressure sensor
PW Series Vibrating Wire Multi Level Piezometer
The PW-ML multi-level piezometer strings multiple vibrating-wire piezometers along a…
- Range
- 0.2, 0.35, 0.5, 0.75, 1, 1.5, 2, 3, 5 MPa
- Accuracy
- ±0.1% F.S.
Digital piezometers - d-Piezo
YieldPoint's d-Piezo is a digital piezometer that integrates a MEMS pressure transducer…
- Range
- 0-1000 kPa (unvented)
- Output
- RS485, transmitted to a data logger up to 500 m over 2 x twisted pair
FOP-MicroPZ Fiber Optic Miniature Piezometer
The FOP-MicroPZ is a robust and ultra-compact fiber optic piezometer used to measure…
- Range
- 100, 200, 350 (standard), 500, 750, 1000 kPa
- Accuracy
- ±0.5% F.S.
FPC-Pneumatic Piezometer
The FPC-2 pneumatic piezometer consists of a thin flexible diaphragm to which the fluid…
- Range
- 0–1000 kPa (standard), 0–3500 kPa (high pressure)
- Accuracy (PR-20 readout)
- ±0.25% F.S. of pressure gauge
Standpipe Piezometer CP1, CP15
The CP1 and CP15 are Roctest standpipe piezometer filter tips attached to a rigid PVC…
- Type
- Porous plastic filter (CP1: perforated rigid PVC body; CP15: crush-resistant)
- Length
- CP1: 350 mm; CP15: 300 mm or 600 mm
Vibrating Wire Piezometer - VWP
The Roctest PW series vibrating wire piezometer measures pore-water or other fluid…
- Range
- 0.0352, 0.0702, 0.2, 0.35, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7 MPa
- Accuracy
- ±0.1%
PR-20 Pneumatic Pressure Indicator
The Roctest PR-20 is a portable pneumatic pressure indicator used to read pneumatic…
- Range
- 200-10,000 kPa
- Accuracy
- ±0.25% F.S.
d-Plucker Vibrating wire sensor interface
The d-Plucker is a Yieldpoint interface that converts vibrating-wire (VW) transducers,…
- Range
- 166-2000 µs period measurement; temperature -40 to 125 °C
- Output
- RS485 (9600,8,N,1) ASCII-encoded: instrument ID, sensor type, temperature and period data
