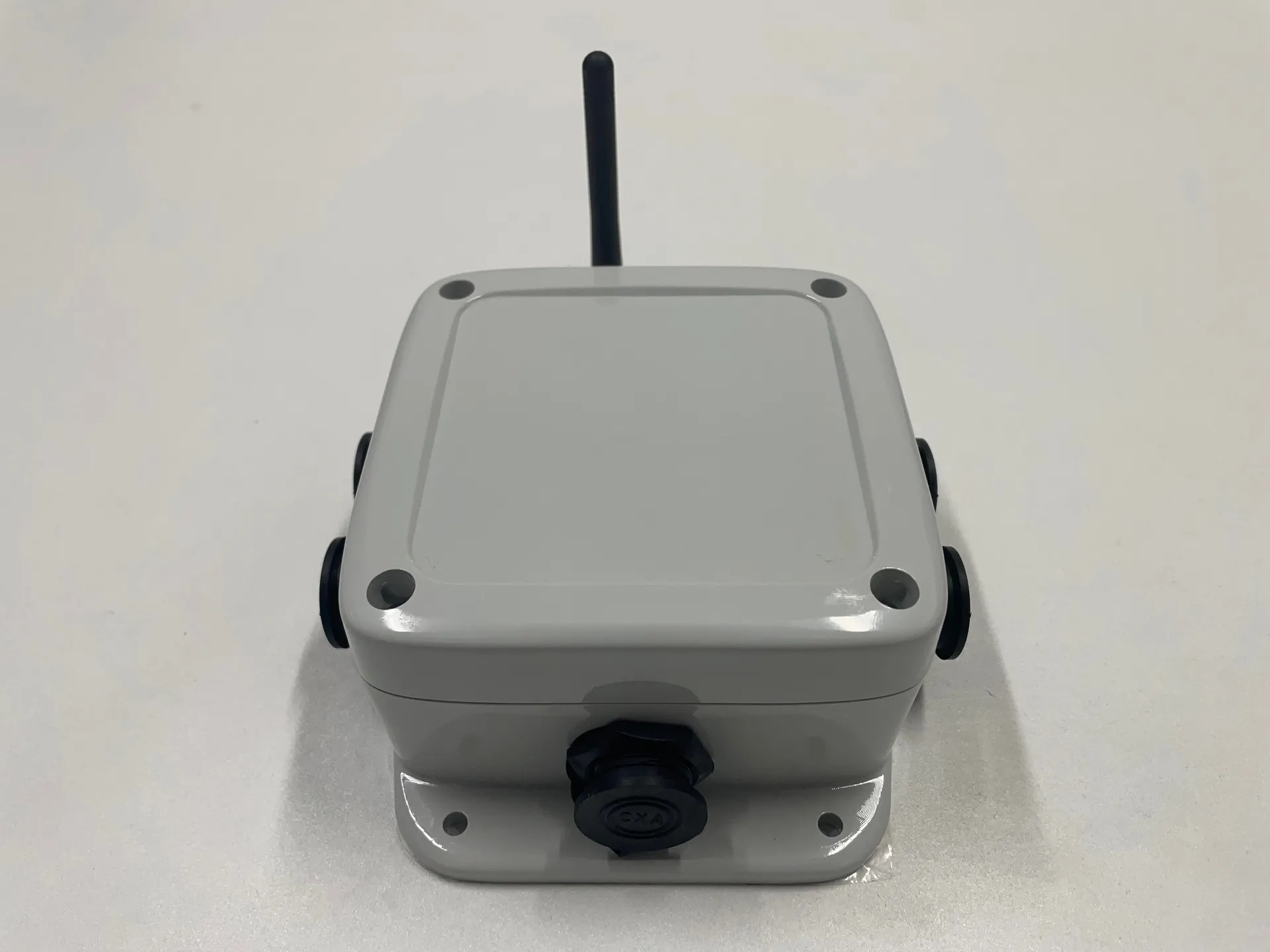

d-Plucker Vibrating wire sensor interface
The d-Plucker is a Yieldpoint interface that converts vibrating-wire (VW) transducers, such as load cells, stressmeters and piezometers, into d-Tech compatible digital instruments readable by YieldPoint's d-Reader, d-Logger and d-Mesh peripherals; 1-channel and 4-channel versions are available.
- Range
- 166-2000 µs period measurement; temperature -40 to 125 °C
- Output
- RS485 (9600,8,N,1) ASCII-encoded: instrument ID, sensor type, temperature and period data
- Core technology
- 20MHz microcontroller, 0-5V 500-6000Hz sweep
Overview
In detail
How it works
A 20MHz microcontroller provides a 0-5V, 500-6000Hz sweep to pluck the vibrating wire, and the resulting period is measured and reported over RS485.
Output & accuracy
Output is an RS485 (9600,8,N,1) ASCII-encoded signal comprising a unique instrument ID, sensor type, temperature (°C) and period (µs) data. VW resolution is 0.1µs with a handheld readout, with displacement accuracy better than ±1µs. Temperature accuracy is ±1°C, digitally trimmed at 0°C and 25°C, with 0.1°C resolution.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 166-2000 µs period measurement; temperature -40 to 125 °C
- Core technology
- 20MHz microcontroller, 0-5V 500-6000Hz sweep
- Output
- RS485 (9600,8,N,1) ASCII-encoded: instrument ID, sensor type, temperature and period data
- Resolution
- 0.1µs (VW), handheld readout
- Accuracy
- Better than ±1µs (displacement); ±1°C (temperature, digitally trimmed at 0°C and 25°C)
- Temperature resolution
- 0.1°C
