PR-20 Pneumatic Pressure Indicator

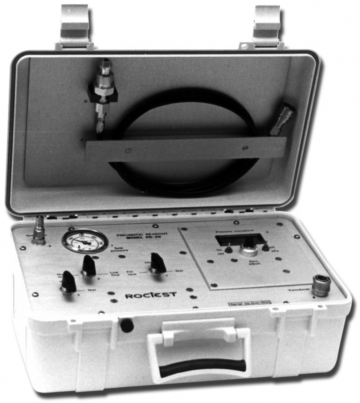

The Roctest PR-20 is a portable pneumatic pressure indicator used to read pneumatic piezometers and pressure transducers. It is housed in a strong watertight case that contains all the circuitry for reading the transducers and for refilling its self-contained nitrogen-gas cylinder.
- Range
- 200-10,000 kPa
- Accuracy
- ±0.25% F.S.
- Operating temperature
- -20 to +60°C
Overview
In detail
How it works
The unit reads pneumatic piezometer transducers using an internal nitrogen-gas supply and displays the result on a 105 mm diameter test gauge fitted with an anti-parallax mirror. An automatic constant low-flow control valve gives precise, repeatable readings on ranges below 0-1000 kPa. The digital variant, the PR-20D, uses a high-precision digital test gauge in place of the analogue dial but shares the same physical specifications and pressure capability.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 200-10,000 kPa
- Accuracy
- ±0.25% F.S.
- Operating temperature
- -20 to +60°C
- Dimensions
- 450 x 300 x 180 mm
- Weight
- 9 kg
- Gauge
- 105 mm diameter test gauge with anti-parallax mirror
