EchoPro SMA Accelerograph
The EchoPro SMA was an all-in-one strong motion accelerograph combining a MEMS accelerometer with an onboard recorder. It has been discontinued and replaced by the Gecko SMA, which carries over its core design.
- Status
- Discontinued; replaced by the Gecko SMA
- Accelerometer
- Internal MEMS accelerometer, three-axis (N-S, E-W, Up-Down)
- Storage
- Removable USB flash drive, continuous data in 1-minute files (year/month/day/hour folders)
Overview
In detail
How it works
EchoPro SMA combined a MEMS accelerometer with the reliability and simplicity of an all-in-one sensor-and-recorder unit, measuring motion in three dimensions (typically North-South, East-West and Up-Down). Continuous data was stored on a removable USB flash drive in one-minute files, organised into year/month/day/hour folders for easy browsing on any PC.
Installation

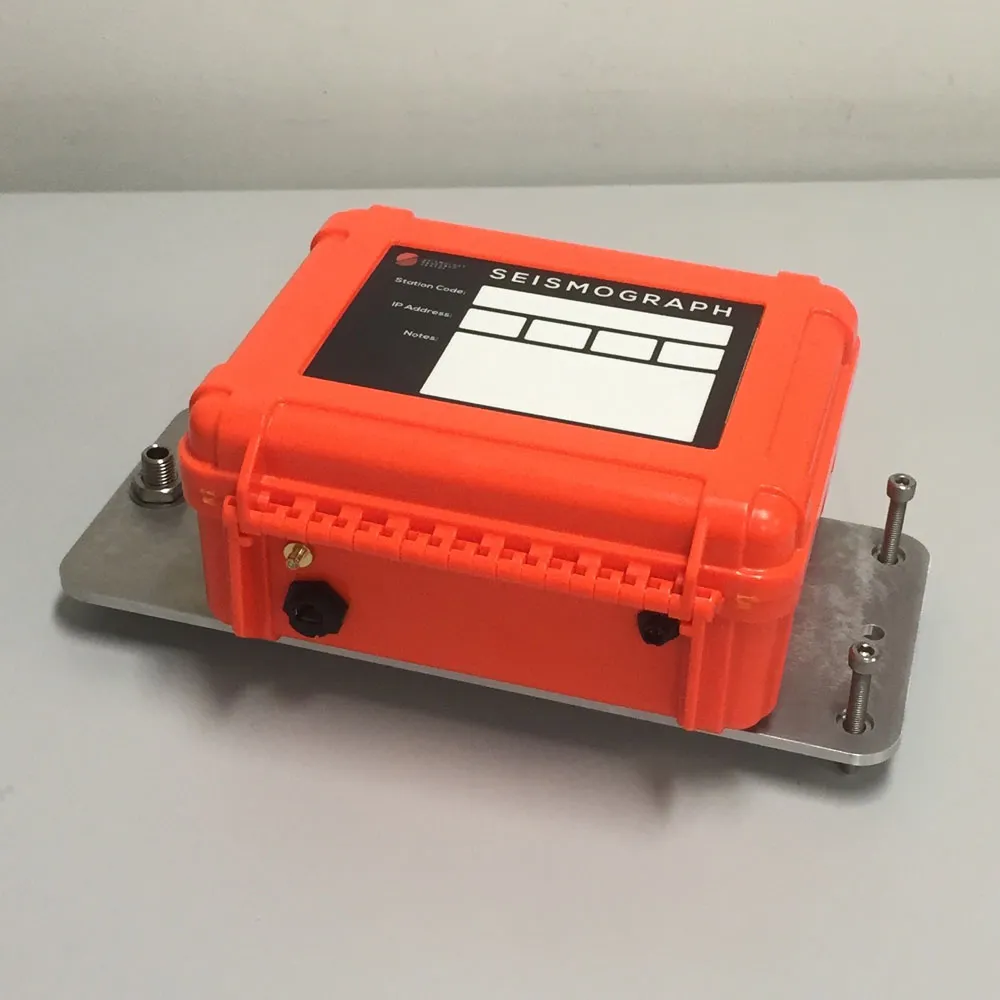

The unit was supplied on a mounting plate, bolted down and levelled using threaded feet, for mounting on the ground or a wall; a North indicator was included for orientation.
Connectivity
An optional LCD and keypad allowed configuration without a PC. Ethernet connectivity let the unit send data files to a remote PC, and data telemetry gave access to the eqAlert service, which sends SMS alerts when the SMA detects abnormal activity.
Reach out and say hi
Specifications
Technical specifications
- Status
- Discontinued; replaced by the Gecko SMA
- Accelerometer
- Internal MEMS accelerometer, three-axis (N-S, E-W, Up-Down)
- Storage
- Removable USB flash drive, continuous data in 1-minute files (year/month/day/hour folders)
- Connectivity
- Ethernet; optional data telemetry for eqAlert SMS alerts
- Display
- Optional LCD and keypad
- Mounting
- Mounting plate with threaded levelling feet; ground or wall mount; North indicator included
Related
Often specified alongside
ESS Earth
Strong Motion Accelerograph
- Range
- ±4g accelerometer range
- Storage
- Local SD card, continuous ring buffer
- Connectivity
- Ethernet or cellular modem telemetry (optional)
- Range
- ±2g, ±5g, ±10g and higher, up to ±400g full scale
