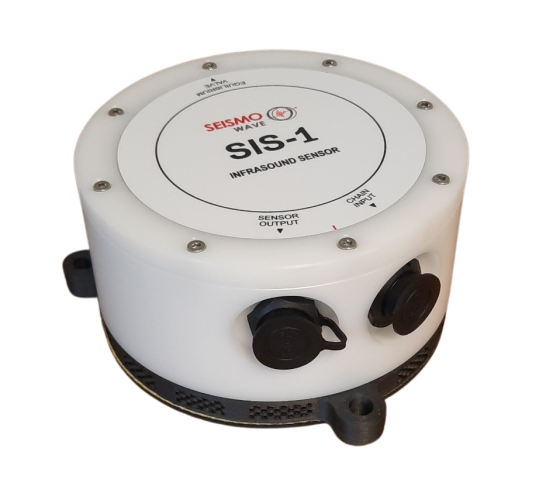

SIS-1 Infrasound Sensor
The SIS-1 is Seismo Wave's compact, low-power infrasound sensor for portable setups, remote sites, or as an addition to seismic stations, and can be chained with other SIS-1 units on the same digitiser.
- Range
- ±995 Pa full scale
- Supply
- 3-20 VDC
- Frequency bandwidth
- 0.1-50 Hz (-3dB)
Overview
In detail
How it works
The SIS-1 provides a differential analogue output proportional to infrasound pressure, with a nominal sensitivity of 2.5-3.5 mV/Pa and self-noise below the Low Noise Model under 1Hz.
Deployment
Its compact, lightweight design and chainable connection let several SIS-1 sensors share a single digitiser, making it well suited to portable arrays or remote installations.
Power
The sensor runs from a wide 3-20VDC supply, drawing under 5mA at 12V, with reverse-polarity and over-voltage protection to 20V.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- ±995 Pa full scale
- Frequency bandwidth
- 0.1-50 Hz (-3dB)
- Sensitivity
- 2.5-3.5 mV/Pa
- Supply voltage
- 3-20 VDC
- Power consumption
- <5mA under 12V
- Operating temperature
- -20 to +60°C
- Dimensions
- 156mm dia x 67mm H
- Weight
- 850g
