Silicon Audio Short Period Seismometer
The Silicon Audio short-period Omnitilt seismometer is an optical seismic sensor that stays tilt-insensitive through 360 degrees, suited to both permanent stations and rapid portable deployments.
- Passband
- 0.1-150 Hz
- Clip level
- ±40 mm/s
- Dynamic range
- 135 dB
Overview
In detail
How it works
The sensor uses a force-balance mass with an interferometric (optical) transducer to achieve low self-noise and a high clip level, with automatic mass centring and no mass lock required. This lets it remain fully tilt-insensitive and omnidirectional across a full 180° range.
Measurement
It offers a flat passband from 0.1 to 150 Hz, a clip level of ±40mm/s, and 135dB of dynamic range, with self-noise below the low-noise model from 0.1-1Hz and close to it above 1Hz.
Deployment

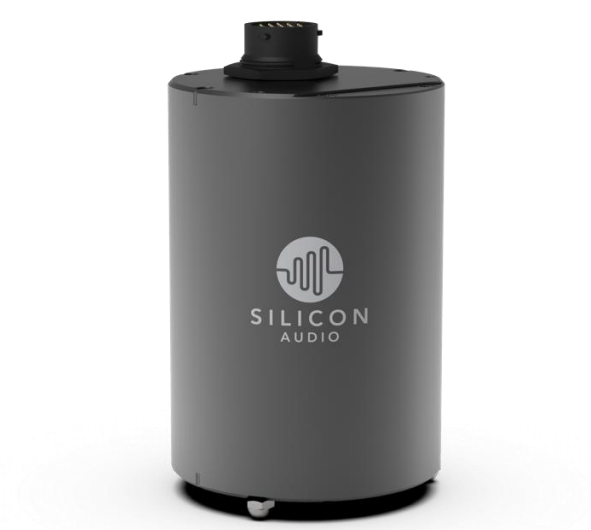

The sensor withstands shocks above 3000g and is available in vault or porthole packaging, in a small, lightweight and rugged 3-axis configuration suited to permanent observation or portable stations.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Passband
- 0.1-150 Hz
- Clip level
- ±40 mm/s
- Dynamic range
- 135 dB
- Sensitivity
- 885 V/m/s
- Tilt tolerance
- ±180°
- Shock tolerance
- >3000g
- Dimensions
- Posthole: 83mm dia x 120mm H; Vault: 115 x 115 x 68mm
- Configuration
- 3-axis
- Sensing method
- Force balance with interferometric transducer
