RXTX Remote Reading Pendulum Station
The RxTx Telependulum is a precise optoelectronic instrument that measures the horizontal (X, Y) and optional vertical (Z) position of a pendulum wire, with a built-in datalogger for remote, unattended readings.
- Range
- 50 x 50 x 25 mm
- Supply
- 117 Vac (DC power supply option available)
- Accuracy
- ±0.05 mm (precision)
Overview
In detail
How it works
A CCD sensor optically tracks the relative position of a pendulum wire in the X and Y axes (Z optional), recording each reading with date and time to non-volatile RAM with capacity for 370 readings.
Remote reading
Two communication ports allow data to be transmitted to remote locations via an optional modem. Commands can be executed locally through a console port, or remotely over dedicated or switched telephone links across a communications network.
Installation

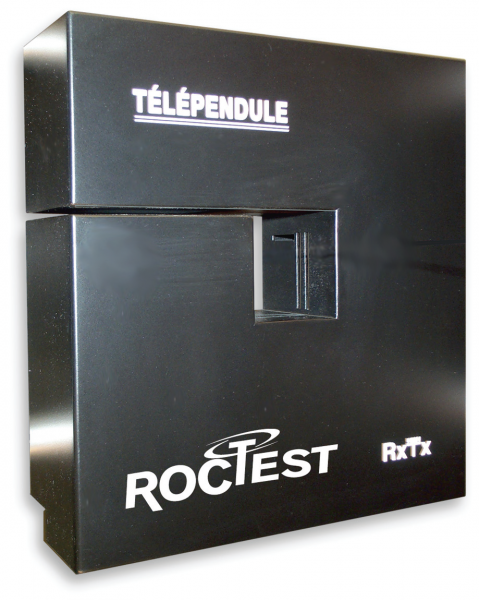

The instrument is housed in a compact, sturdy, weatherproof cabinet fitted with a slot that allows it to be installed without dismantling the pendulum system, whether standard or inverted.
Measurement
The instrument delivers ±0.05 mm precision with 7.5 µm resolution over a 50 x 50 x 25 mm measurement range.
Reach out and say hi
Specifications
Technical specifications
- Range
- 50 x 50 x 25 mm
- Accuracy
- ±0.05 mm (precision)
- Resolution
- 7.5 µm
- Operating temperature
- −10 °C to +40 °C
- Supply voltage
- 117 Vac (DC power supply option available)
- Data storage
- 370 readings, non-volatile RAM
- Communication ports
- RS232C/V.24; console 9600 bit/s; Hayes-compatible modem 2400 bit/s (9600 bit/s option)
- Sensor
- CCD
- Dimensions
- 360 x 380 x 130 mm
- Weight
- 10 kg
