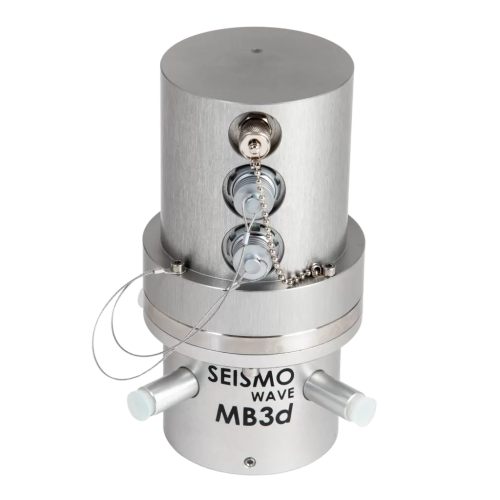

MB3d Digital Infrasound Sensor
The MB3d is the digital version of Seismo Wave's MB3a infrasound sensor, with an embedded 24-bit digitiser. It records ultra-low-frequency acoustic signals from 0.01 to 28 Hz for atmospheric and seismic monitoring.
- Range
- 0.01–28 Hz
- Output
- 24-bit digitiser (integrated)
- Storage
- 1 GB
Overview
In detail
How it works
The MB3d shares the MB3a's low-noise sensing element but adds an embedded 24-bit digitiser, so it records ultra-low-frequency acoustic signals from 0.01 to 28 Hz with instrumental noise more than 18 dB below the Low Noise Model at 1 Hz.
Integrated digitiser
The sensor integrates a 24-bit digitiser with 1 GB of onboard storage, removing the need for a separate external digitiser in the field.
Applications
Used across scientific, civil and military infrasound monitoring: explosion monitoring, volcanology, meteorology, earthquake and tsunami monitoring, tornado tracking, meteor detection, landslide and avalanche monitoring, and wind farm emissions.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0.01–28 Hz
- Output
- 24-bit digitiser (integrated)
- Storage
- 1 GB
- Noise
- >18 dB below Low Noise Model at 1 Hz
