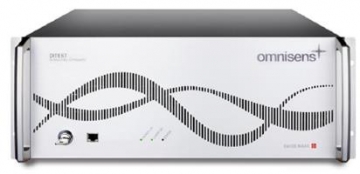

DiTeSt Dual Reading Unit
The DiTeSt Dual Reading Unit is a Brillouin-scattering (BOTDA/BOTDR) interrogator for distributed strain and temperature measurement, covering up to 60 km in loop (BOTDA) configuration or up to 45 km single-ended (BOTDR), across 4 built-in channels expandable to 20 with an optional optical switch.
- Range
- up to 60 km (BOTDA loop) / up to 45 km (BOTDR single-end)
- Ingress
- IP20
- Supply
- 100-240 VAC, <150 VA
Overview
In detail
How it works
A laser-based measurement system using Stimulated Brillouin Scattering within the sensing fiber. It monitors local strain and temperature at thousands of locations along a single optical fiber in a single measurement, making it a powerful diagnostic tool for identifying and localizing potential problems in monitored structures.
Measurement
BOTDA (loop) configuration reaches up to 60 km; BOTDR (single-end) configuration reaches up to 45 km. Spatial resolution is 1-20 m in BOTDA mode and 1.5-20 m in BOTDR mode, with accuracy down to 0.1°C and 2 microstrain. Acquisition time ranges from 1 to 15 minutes depending on the resolution selected.
Deployment
19" rack-mountable (4U), with an internal hard disk (over 500 GB) or optional SSD for data storage, and compatible with standard single-mode fiber (ITU-T G.652, G.655, G.657).
Reach out and say hi
Specifications
Technical specifications
- Number of channels
- 4 built-in (expandable to 20 with optical switch)
- Range
- up to 60 km (BOTDA loop) / up to 45 km (BOTDR single-end)
- Spatial resolution
- 1-20 m (BOTDA) / 1.5-20 m (BOTDR)
- Sampling resolution
- 0.25 m typical (1 m at maximum distance)
- Accuracy
- 0.1°C temperature (-150°C to +1000°C) / 2 microstrain
- Brillouin frequency shift
- 0.1 MHz (9.5-12.5 GHz)
- Acquisition time
- 1-15 minutes, resolution-dependent
- Dimensions (H x W x D)
- 449 x 500 x 177.8 mm
- Weight
- 15 kg
- Operating temperature
- 0°C to 45°C
