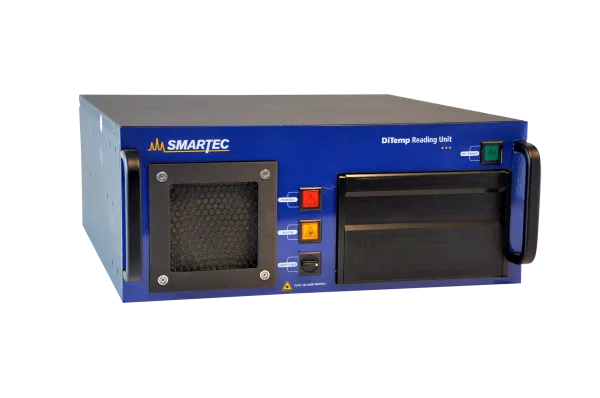

DiTemp Reading Unit
The DiTemp Reading Unit is a rack-mountable Raman OTDR interrogator for distributed temperature sensing, measuring along fiber optic sensing cables up to 30 km with down to 1 m spatial resolution and a 10 second measurement time.
- Range
- 15 km / 30 km
- Spatial resolution
- down to 1 m
- Sampling resolution
- 1 m
Overview
In detail
How it works
Uses the Raman OTDR measuring principle to capture a full temperature profile along a fiber optic sensing cable. A single built-in channel can be expanded to 4, 8 or 16 channels with an external multiplexer, and the unit is available in multimode or singlemode fiber versions.
Deployment
Rated for 5°C to 40°C operation (-15°C to +65°C storage), with a user-selectable measurement time from 10 seconds up to 60 minutes. Connects via Modbus, Ethernet or TCP through the DiView software, plus a volt-free alarm module.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 15 km / 30 km
- Spatial resolution
- down to 1 m
- Sampling resolution
- 1 m
- Temperature resolution
- down to 0.1°C
- Number of channels
- 1 (expandable to 4/8/16 with multiplexer)
- Fiber typology
- Multimode 50/125 µm (ITU-T G.651) or singlemode 9/125 µm (ITU-T G.652)
- Operating temperature
- 5°C to 40°C
- Storage temperature
- -15°C to +65°C
- Humidity
- 5% to 95% RH, non-condensing
- AC power
- 100V-240V, 50Hz-60Hz
- DC power
- 24V or 48V option
