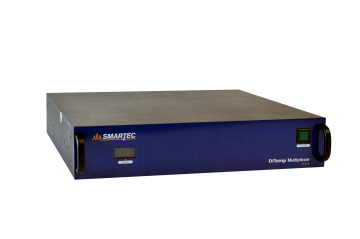

DiTemp External Multiplexer
The DiTemp External Multiplexer converts a single-channel DiTemp reading unit into a multi-channel distributed temperature sensing system, letting one interrogator address up to 16 separate sensing cables (up to 480 km of cable in total) from a single location.
- Channels
- 4 ch / 8 ch / 16 ch
- Dimensions (H x W x D)
- 88 x 483 x 473 mm
- Weight
- 5.7 kg
Overview
In detail
How it works
Used in conjunction with the DiTemp reading unit, the multiplexer comes as a separate module. When connected, it enables the DiTemp to measure up to 16 different sensor cables from one location, covering up to 480 km of sensing cable per DiTemp reading unit.
Deployment
Where large-scale coverage is required, combining a DiTemp reading unit with the multiplexer unit is one of the most effective and cost-effective distributed sensing solutions available.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Channels
- 4 ch / 8 ch / 16 ch
- Dimensions (H x W x D)
- 88 x 483 x 473 mm
- Weight
- 5.7 kg
- Operating temperature
- +5°C to +40°C
