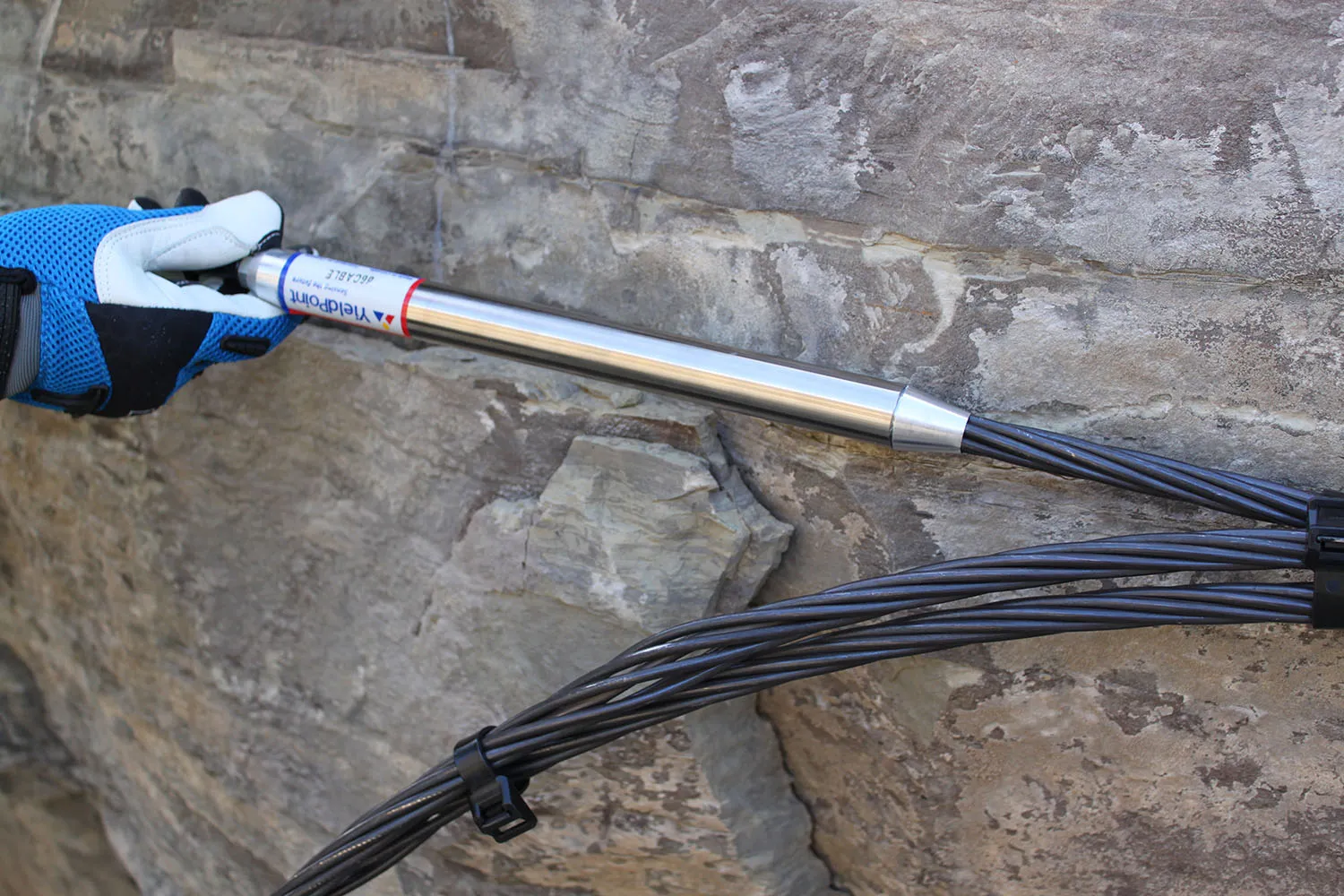

d-Cable Instrumented Cable
The d-CABLE is a Yieldpoint instrumented seven-wire cable bolt that uses a miniature inductive strain gauge recessed into a surrogate tubular king-wire to monitor how load develops along the length of a cable bolt, ground anchor or tieback.
- Cable
- Seven-wire instrumented cable
- Gauge base length
- 200 mm to 2000 mm
- Configuration
- Head-at-Collar (HAC) or Head-at-Toe (HAT)
Overview
In detail
How it works
A miniature inductive strain gauge is recessed into a surrogate tubular king-wire, with gauges configured to base lengths of 200mm to 2000mm. Once both ends of a gauge are secured, it measures how that length of cable stretches in response to load, helping to predict the risk of catastrophic structural failure and supporting installation quality control, long-term operation assessment and rehabilitation work.
Applications
Applicable to plain strands, bulb cables, ground anchors and tie-backs used in mining and civil projects, in both Head-at-Collar (HAC) and Head-at-Toe (HAT) configurations.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Cable
- Seven-wire instrumented cable
- Gauge base length
- 200 mm to 2000 mm
- Configuration
- Head-at-Collar (HAC) or Head-at-Toe (HAT)
