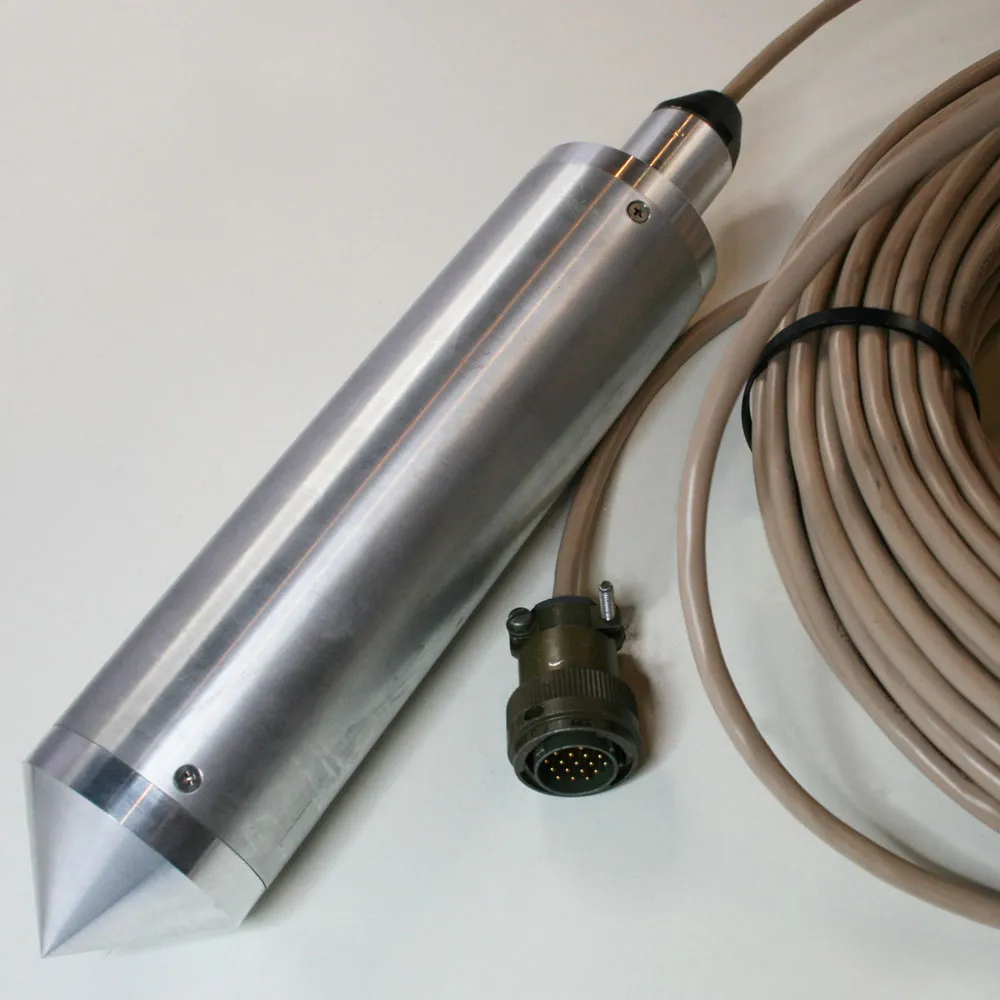

Borehole Geophone
The Borehole Geophone is a waterproof mine-microseismic geophone available in uniaxial, biaxial or triaxial configurations, with low-frequency responses from 4.5Hz to 15Hz for exploration and block-cave monitoring networks, often paired with borehole accelerometers for wide dynamic range.
- Ingress
- High resistance to water ingress; high-pressure applications
- Frequency response
- 4.5 Hz, 8 Hz, 10 Hz, 14 Hz or 15 Hz sensors
- Configuration
- Uniaxial, biaxial or triaxial
Overview
In detail
Design
Geophones are offered with 4.5Hz, 8Hz, 10Hz, 14Hz or 15Hz low-frequency sensors, in an aluminium body or PVC housing, with large bandwidth and high resistance to water ingress for high-pressure downhole applications. A high-temperature option is also available.
Applications
They're commonly used in exploration and mine microseismic monitoring, often combined with accelerometers for wide dynamic-range recording, and deployed as sensor networks around block-cave mining. Configurations can be uniaxial, biaxial or triaxial depending on the application.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Frequency response
- 4.5 Hz, 8 Hz, 10 Hz, 14 Hz or 15 Hz sensors
- Configuration
- Uniaxial, biaxial or triaxial
- Housing
- Aluminium body or PVC housing
- Ingress
- High resistance to water ingress; high-pressure applications
