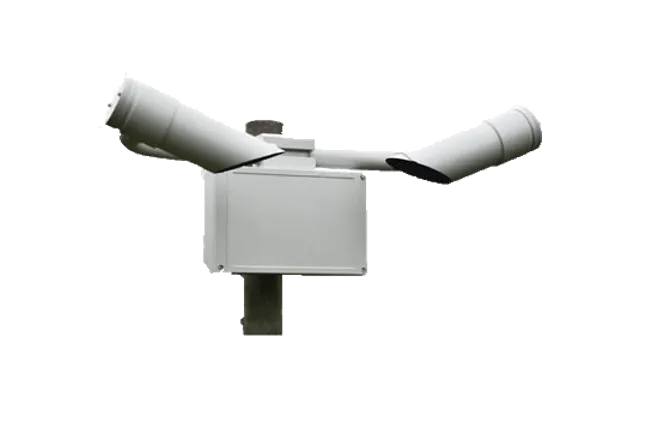

ZVS Visibility Sensor
The ZVS Visibility Sensor uses infrared laser forward-scattering technology to measure atmospheric visibility for road, meteorological and general environmental monitoring applications.
- Range
- 5m-10km
- Output
- RS485, RS232, WiFi, Bluetooth, LTE
- Supply
- DC 12V/24V
Overview
In detail
How it works
The sensor combines a light emitter, light receiver and microprocessor controller to measure near-infrared forward and backward scattering (39°-51° scattering angle, 850nm peak wavelength, 100nm bandwidth) and derive the atmospheric extinction coefficient, from which visibility is calculated.
Measurement
The ZVS reports visibility over a 5m-10km range, with accuracy of ≤2km ±2% and 2-10km ±5%, and a consistency of 4%; data updates every 0-60 seconds.
Deployment
The sensor is an integrated, compact unit with an inclined housing to shed dust, rain and snow, an anti-dust/anti-fungal coating and 15kV ESD/lightning protection; it draws less than 2W (under 5W with winter heating) from a DC 12V/24V supply and communicates via RS485/RS232 or wireless (WiFi/Bluetooth/LTE).
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 5m-10km
- Accuracy
- ≤2km ±2%; 2-10km ±5%
- Operating temperature
- -40°C to 85°C
- Supply voltage
- DC 12V/24V
- Output
- RS485, RS232, WiFi, Bluetooth, LTE
- Power consumption
- <2W (<5W with heating)
- Peak wavelength
- 850nm
Related
Often specified alongside
Weathertech

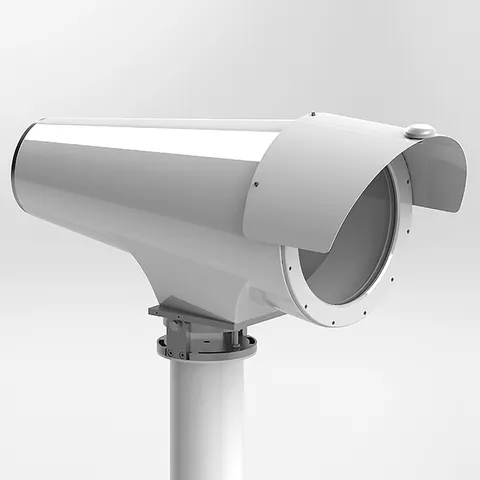

X-LAS MkII Scintillometer
