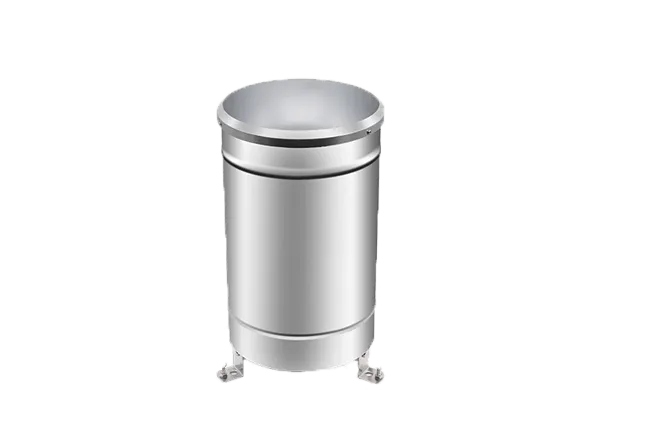

ZDR Tipping Bucket Rain Gauge
The ZDR Tipping Bucket Rain Gauge is a traditional weather-station instrument that measures rainfall using a calibrated funnel and tipping-bucket mechanism, outputting an electronic switch pulse for automatic logging.
- Range
- 0-4mm/min (up to 0-8mm/min on some variants)
- Resolution
- 0.1-1mm, model-dependent (ZDR010/020/050/100)
- Operating temperature
- 0°C to 60°C
Overview
In detail
How it works
Rain collects in a Φ200mm funnel and fills one of two calibrated buckets mounted on a fulcrum; each bucket is held by a magnet until it reaches the calibrated volume, then tips and triggers an electronic switch pulse that is counted to derive rainfall.
Measurement
The gauge measures rainfall at 0-4mm/min (up to 0-8mm/min on some variants), with resolution options from 0.1mm to 1mm across the ZDR010/020/050/100 model range, and operates from 0°C to 60°C.
Deployment
It is used for traceability analysis of rainfall data across automatic weather stations, water conservancy, mountain-torrent monitoring, urban waterlogging monitoring and smart-city monitoring, and is available in single-tipping and double-tipping designs in plastic or stainless-steel construction.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0-4mm/min (up to 0-8mm/min on some variants)
- Resolution
- 0.1-1mm, model-dependent (ZDR010/020/050/100)
- Operating temperature
- 0°C to 60°C
- Funnel diameter
- Φ200mm
- Accuracy
- 2-3%, varies by model
- Mechanism
- Reed pulse, tipping bucket
