X-Band Ranger Weather Radar from EEC

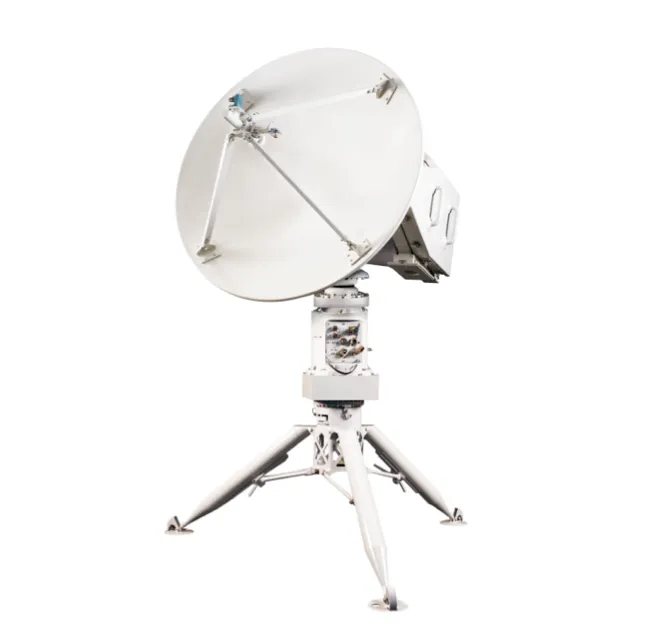

EEC's Ranger is a compact, dual-polarization X-Band weather radar system built with a solid-state transmitter, suited to short-to-mid-range detection in permanent or portable installations from airports to offshore platforms.
- Range
- X-Band
- Output
- 100 W dual-polarity solid-state transmitter (Ranger-X1); higher radiated power on Ranger-X5
- Weight
- <430 lbs / 195 kg (Ranger-X1)
Overview
In detail
How it works
Operating on the shorter X-Band wavelength, the Ranger has dual-polarity built in, allowing it to detect even tiny particles such as high-altitude water droplets or light snow at short to mid-range distances. The Ranger-X1, developed with the University of Oklahoma's Advanced Radar Research Center, weighs less than 430 lbs/195 kg and features a 100-watt dual-polarity solid-state transmitter with very low power consumption; the Ranger-X5 offers more radiated power.
Deployment
The compact size allows installation in hard-to-reach permanent locations or fully portable deployment. EEC's turnkey design, manufacturing and installation process configures each system to the customer's specification, with a choice of control and display systems, Doppler processing through super-sensitive digital receivers, and permanent or mobile installation options.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Output
- 100 W dual-polarity solid-state transmitter (Ranger-X1); higher radiated power on Ranger-X5
- Weight
- <430 lbs / 195 kg (Ranger-X1)
- Range
- X-Band
- Polarization
- Dual-polarization, built in
