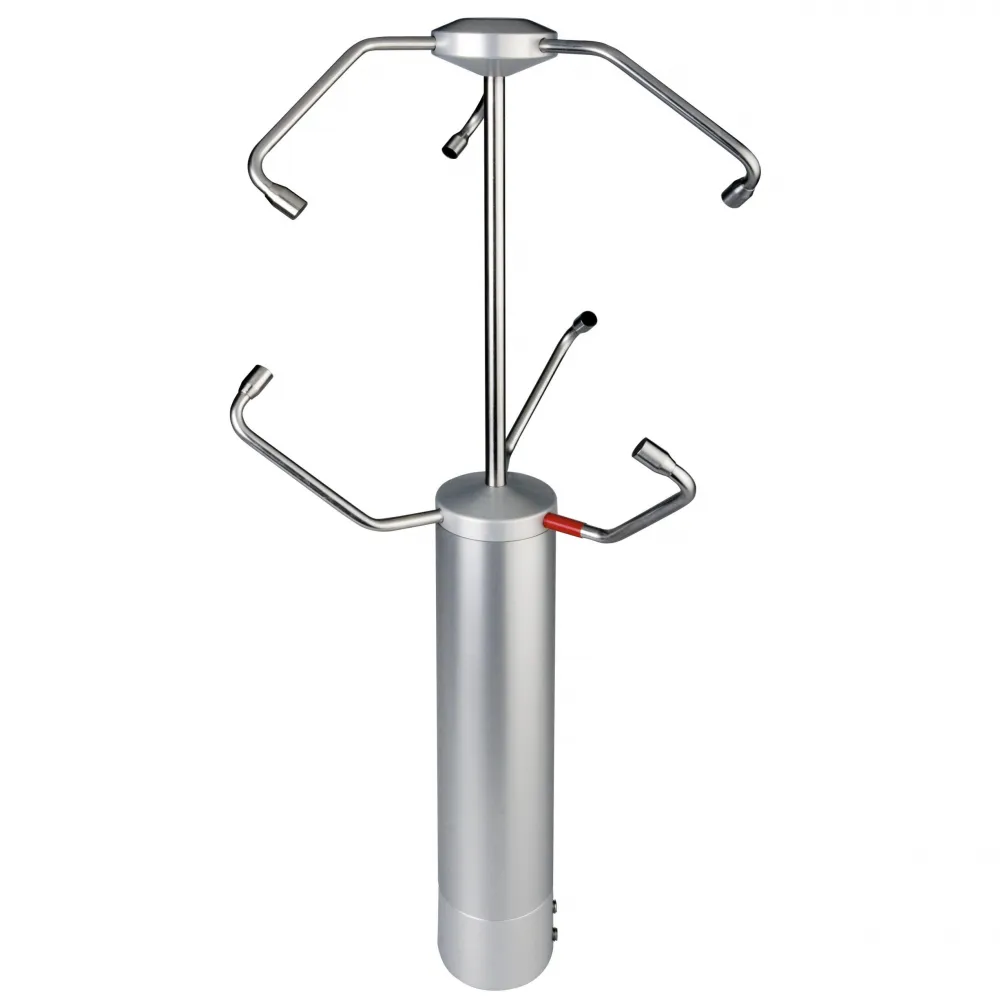

Ultrasonic Anemometer
Thies Clima's ultrasonic anemometer measures wind speed and direction acoustically, capturing fast-changing gusts and peak values inertia-free with no moving parts. It's available in 1D, 2D and 3D configurations for meteorology, climate networks, wind-power and research applications.
- Range
- 0.01 to 65 m/s (wind speed)
- Output
- RS-485/RS-422 digital; 0-10V/4-20mA analogue
- Ingress
- IP65
Overview
In detail
How it works
The sensor uses an acoustic (ultrasonic) measuring principle with no moving parts, so gust and peak wind values are acquired inertia-free with high precision. Heated sensor arms allow winter operation without recalibration.
Measurement
Wind speed is measured from 0.01 to 65 m/s, accurate to ±0.1 m/s up to 5 m/s and ±2% above that. Wind direction covers the full 0-360° at ±1° accuracy. The 1D, 2D and 3D models measure progressively more axes of the wind vector.
Connectivity
The sensor provides a digital RS-485/RS-422 output alongside analogue 0-10 V and 4-20 mA channels, and runs from a 12-24 VAC/DC supply drawing 3 VA standard (150 VA with heating enabled). The housing is rated IP65 and operates from -55°C to +70°C.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0.01 to 65 m/s (wind speed)
- Accuracy
- ± 0.1 m/s (up to 5 m/s), ± 2% (above 5 m/s)
- Wind direction range
- 0 to 360°, ± 1° accuracy
- Ingress
- IP65
- Operating temperature
- -55 to +70 °C (storage -50 to +80 °C)
- Supply voltage
- 12 to 24 VAC/DC
- Power consumption
- 3 VA standard (150 VA with heating)
- Output
- RS-485/RS-422 digital; 0-10V/4-20mA analogue
