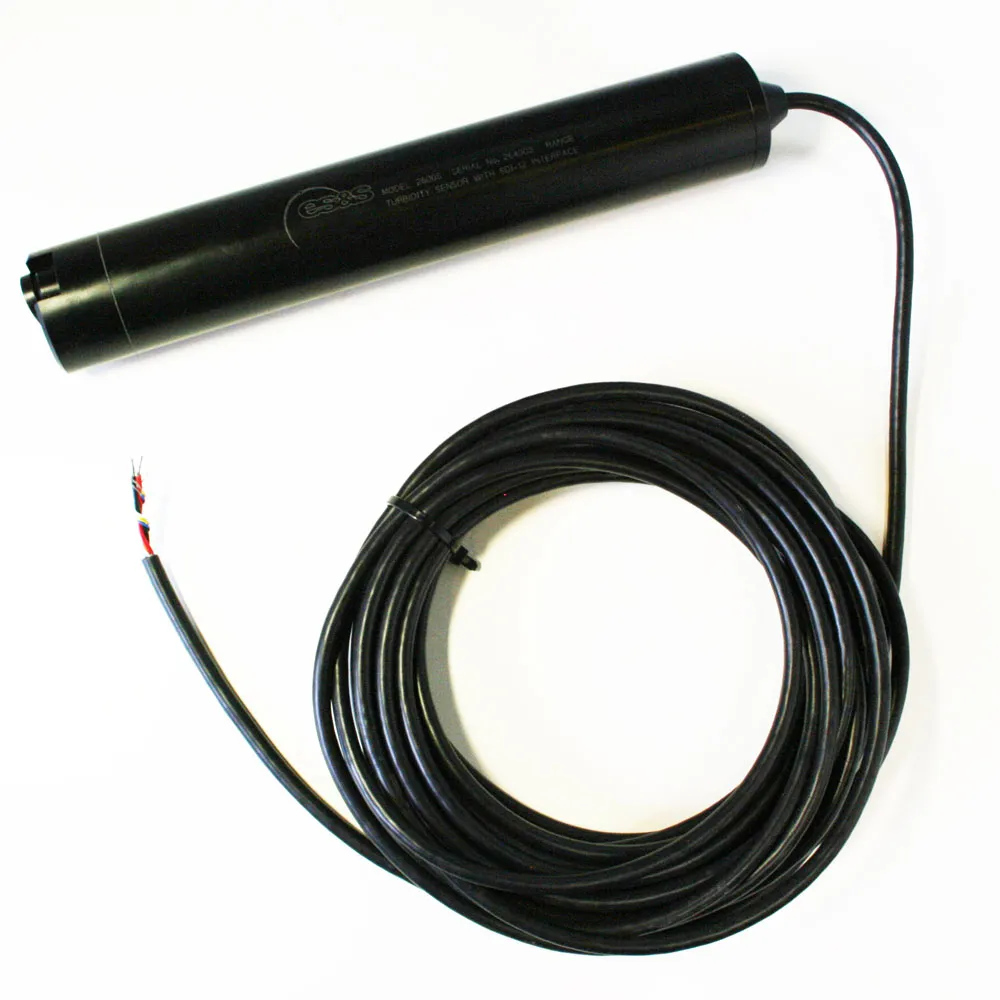

TS-2600 Turbidity Sensor
The Greenspan 2600 is a miniature backscatter nephelometer that measures turbidity and suspended solids in water, responding linearly across more than three decades from potable water to sediment-laden rivers. Its lens-protection device maintains reading consistency and reduces cleaning-related maintenance.
- Range
- 0 to 100 NTU standard; 250, 500, 1000 and 2000 NTU also available
- Output
- 4-20 mA current loop (3-wire, 600 Ω max)
- Supply
- 10 to 15 V DC, unregulated
Overview
In detail
How it works
The 2600 uses an optical backscatter (nephelometer) measurement principle to detect turbidity and suspended solids, responding linearly from potable water up to sediment-laden rivers. A unique lens-protection device maintains reading consistency and reduces maintenance-related cleaning of the sensor.
Connectivity
The sensor outputs an analogue 4-20 mA current loop (3-wire, 600 ohms max) and runs from a 10-15 V unregulated supply, drawing around 500 mA (0.3 mAh per reading), with a response time of 2 seconds to full accuracy.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0 to 100 NTU standard; 250, 500, 1000 and 2000 NTU also available
- Accuracy
- ± 2% FS (linearity/hysteresis)
- Output
- 4-20 mA current loop (3-wire, 600 Ω max)
- Supply voltage
- 10 to 15 V DC, unregulated
- Power consumption
- 500 mA (0.3 mAh per reading)
- Response time
- 2 s to full accuracy
- Temperature stability
- < 0.05% per °C (0-30 °C)
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the TS-2600 — no login, no paywall.
