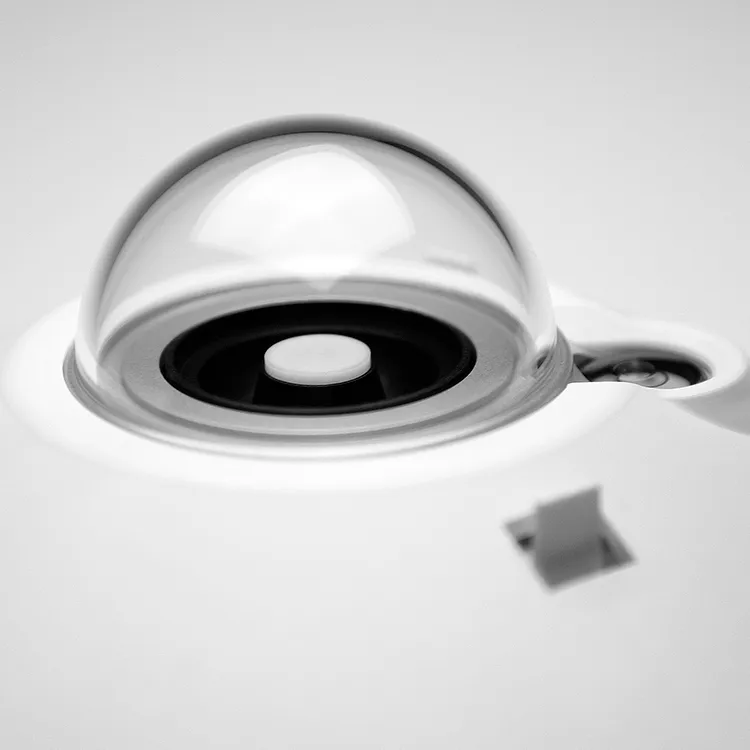

SUV5 UV Radiometer
The SUV5 is a general-purpose UV irradiance sensor for meteorology, material testing, lamp monitoring and solar-simulator ageing tests. It offers a Modbus interface, amplified analogue output and temperature-corrected measurements for reliable all-weather monitoring of global UV irradiance.
- Supply
- 5 to 30 VDC
- Spectral range
- 280 to 400 nm
- Maximum UVA/UVB irradiance
- 400 W/m²
Overview
In detail
Measurement
The SUV5 covers the 280 to 400 nm spectral range with a response time under 1 second (95%) and a field of view of 180°. Temperature response is under 2%, directional response up to 80° is under 5 W/m2, and deviation from responsivity across 0-400 W/m2 irradiance change is under 1.5%. Maximum UVA/UVB irradiance is 400 W/m².
Connectivity
Digital output is via 2-wire RS-485 Modbus RTU. The -A/-V variants add an amplified analogue output of 4 to 20 mA or 0 to 1 V. A wide, low power supply range of 5 to 30 VDC eases integration into meteorological and industrial systems.
The sensor is built to be extremely robust and is supplied with a 5-year warranty.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 280 to 400 nm
- Maximum UVA/UVB irradiance
- 400 W/m²
- Operating temperature
- -40 to +80 °C
- Response time (95%)
- < 1 s
- Field of view
- 180°
- Temperature response
- < 2%
- Directional response (up to 80°)
- < 5 W/m2
- Analogue output
- 4 to 20 mA / 0 to 1 V
- Digital output
- 2-wire RS-485 Modbus RTU
- Supply voltage
- 5 to 30 VDC
