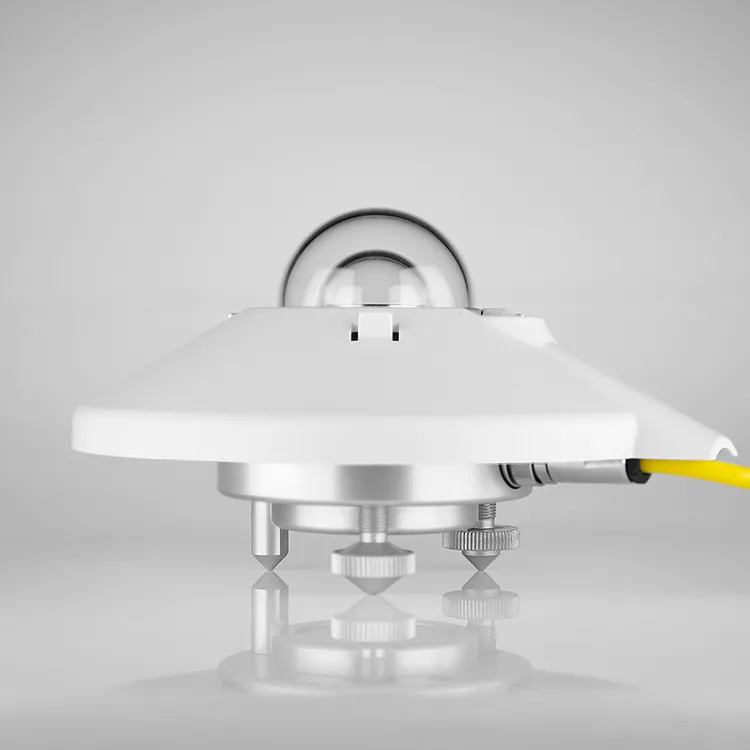

SMP21 Secondary Standard Pyranometer
The SMP21 pyranometer is a secondary standard pyranometer that combines the sensor technology of the CMP21 with an RS-485 Modbus interface alongside analogue output. With internal desiccant and robust build quality, the SMP21 is very low maintenance.
- Spectral range (50% points)
- 285 to 2800 nm
- Sensitivity
- 7 to 14 µV/W/m²
- Response time
- 5 s
Overview
In detail
Interface and power
The SMP21 has a Modbus® RTU interface, amplified analogue output, improved response time and individually temperature-corrected measurement data. It is supplied with individually measured cosine response data. The wide, low power supply range from 5 to 30 VDC makes integration into meteorological and solar energy stations easy, and the SMP21 is protected against over-voltage, reversed polarity and short circuiting.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
- Part number
Specifications
Technical specifications
- Spectral range (50% points)
- 285 to 2800 nm
- Sensitivity
- 7 to 14 µV/W/m²
- Response time
- 5 s
- Zero offset A
- < 7 W/m²
- Zero offset B
- < 2 W/m²
- Directional response (up to 80° with 1000 W/m² beam)
- < 10 W/m²
- Temperature dependence of sensitivity (-20 ºC to +50 ºC)
- < 1 %
- Operating temperature
- -40 °C to +80 °C
- Maximum solar irradiance
- 4000 W/m²
- Field of view
- 180 °
