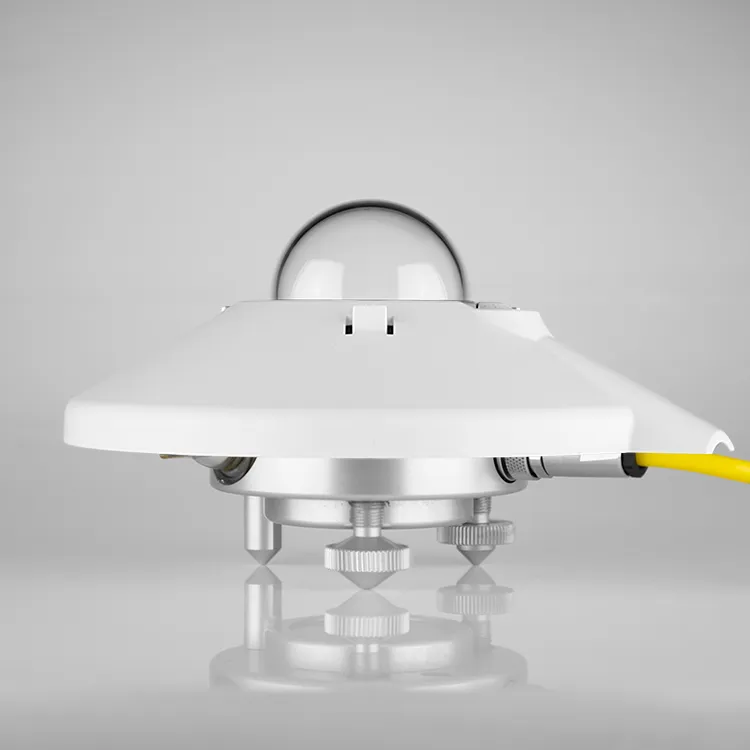

CUV5 UV Radiometer
CUV5 is a general-purpose instrument for applications in meteorology, for material testing, for monitoring of lamps and for use in ageing tests in solar simulators. The broadband UV radiometer provides reliable all-weather monitoring of global UV irradiance.
- Range
- 0 to 400 W/m²
- Spectral response
- 280 to 400 nm
- Spectral error
- < 2%
Overview
In detail
Measuring total UV
'Total UV' is usually monitored in meteorology and climatology stations in addition to pyranometer measurements. UVA and UVB radiation are monitored to investigate their effects on plants and animals, while in materials testing the important issues are the ageing effects of outdoor UV exposure that cause degradation.
Design
The CUV5 is fitted with a maintenance-free internal drying cartridge to provide stable measurements and has an IP67 ingress protection rating. The radiometer features a snap-on white sun shield, integrated levelling and a high-quality connector which is supplied pre-wired with 10 m signal cable for simple installation.
Passive analogue output
The CUV5 does not require any power. Incoming solar UV radiation generates a continuous millivolt output, which is converted in a data logger to irradiance in W/m² using the calibrated sensitivity. All radiometers from Kipp & Zonen come with a 5-year warranty.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral response
- 280 to 400 nm
- Measurement range
- 0 to 400 W/m²
- Spectral error
- < 2%
- Response time (95%)
- < 1 s
- Non-stability (change/year)
- < 2%
- Non-linearity
- < 1%
- Directional response (up to 70° zenith angle)
- < 5%
- Temperature response
- < ±3%
- Impedance
- 2.5 kΩ
- Operating temperature
- -40 to +80 °C
- Ingress Protection (IP) rating
- IP67
