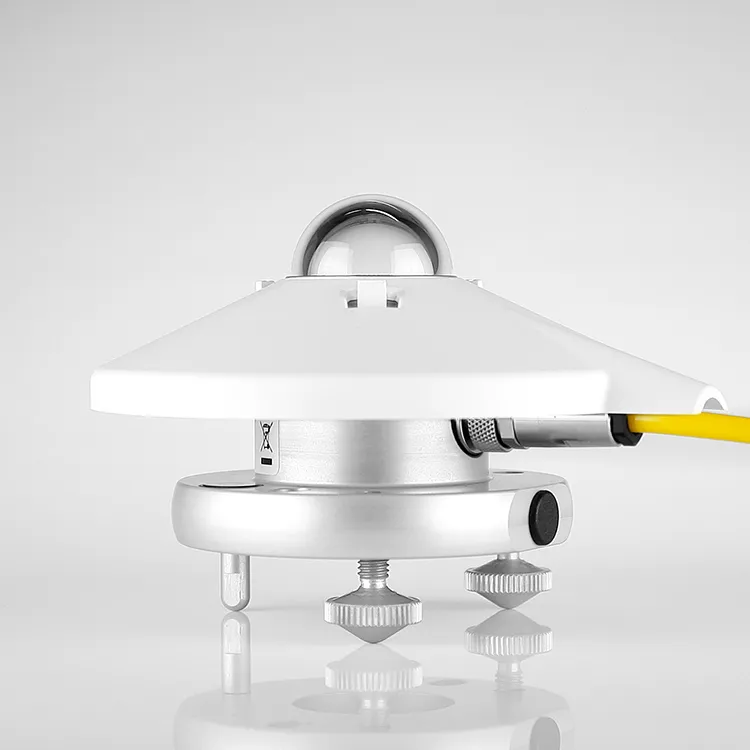

SMP3 Pyranometer
The SMP3 is an entry-level thermopile pyranometer from Kipp & Zonen, based on the proven CMP3 sensor, that measures solar irradiance flux density (W/m²) on a planar surface with an RS-485 Modbus digital output and an amplified analogue output. It is widely used for PV performance monitoring, routine weather-station observations and horticultural applications.
- Output
- 0 to 1 V (-V version) or 4 to 20 mA (-A version)
- Spectral range
- 300 to 2800 nm (50% points)
- Response time
- <1.5 s (63%); <12 s (95%)
Overview
In detail
How it works
Like other SMP and CMP pyranometers, the SMP3 uses a thermopile sensor, which absorbs a greater spectrum of solar radiation and has a near-perfect cosine response than silicon-sensor alternatives, giving more accurate data on incoming solar radiation.
Deployment
Though entry-level, the SMP3 is considered far superior to silicon-sensor pyranometers, providing data suitable for small-scale PV solar farm installations, routine weather-station observations and horticultural applications.
Accessories
Available accessories include the AMPBOX signal booster, a CVF4 ventilation unit to maintain sensor temperature and prevent dew, dust, frost and snow build-up, unventilated and ventilated mounting plates (single or albedometer pairs), mounting brackets, a shadow ring to block direct radiation, an adjustable tilt kit for plane-of-array studies, and cable lengths of 10, 25, 50 and 100 m.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 300 to 2800 nm (50% points)
- Response time
- <1.5 s (63%); <12 s (95%)
- Zero offset A
- <15 W/m²
- Zero offset B
- <5 W/m²
- Directional response
- 20 W/m² (up to 80°, 1000 W/m² beam)
- Temperature dependence of sensitivity
- <3% (-20°C to +50°C)
- Output
- 0 to 1 V (-V version) or 4 to 20 mA (-A version)
- Digital output
- 2-wire RS-485 Modbus
