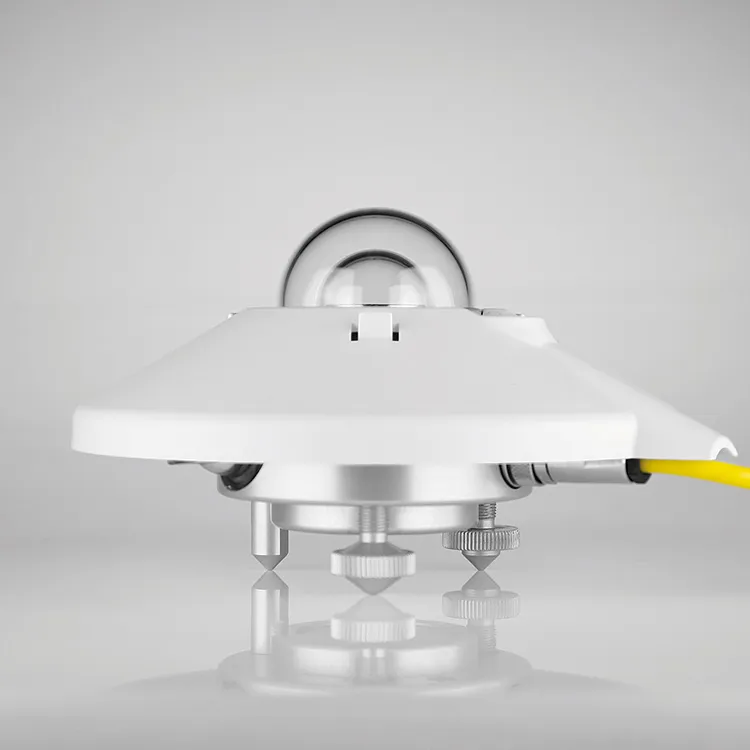

SMP6 Pyranometer
The SMP6 is an ISO 9060 spectrally flat Class B pyranometer from Kipp & Zonen with an RS-485 Modbus RTU interface and amplified analogue output. Its wide 5-30 VDC power supply range and temperature-corrected measurement data make it easy to integrate into meteorological and solar-energy stations.
- Output
- 4 to 20 mA / 0 to 1 V (analogue, -A/-V version)
- Supply
- 5 to 30 VDC
- Spectral range
- 280 to 3000 nm (20% point); 285 to 2800 nm (50% points)
Overview
In detail
Measurement
The SMP6 combines the sensor technology and housing of the CMP6 thermopile pyranometer with a smart digital interface, giving improved response time and temperature-corrected measurement data over the analogue-only version.
Connectivity
The sensor provides both an amplified analogue output (4 to 20 mA or 0 to 1 V, depending on version) and a 2-wire RS-485 Modbus digital output, allowing a seamless changeover when re-calibrating or replacing units.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 280 to 3000 nm (20% point); 285 to 2800 nm (50% points)
- Supply voltage
- 5 to 30 VDC
- Response time
- <1.5 s (63%); <12 s (95%)
- Zero offset A
- <10 W/m²
- Zero offset B
- <4 W/m²
- Directional response
- <15 W/m² (up to 80°, 1000 W/m² beam)
- Temperature dependence of sensitivity
- <3% (-40°C to +70°C)
- Output
- 4 to 20 mA / 0 to 1 V (analogue, -A/-V version)
- Digital output
- 2-wire RS-485 Modbus
