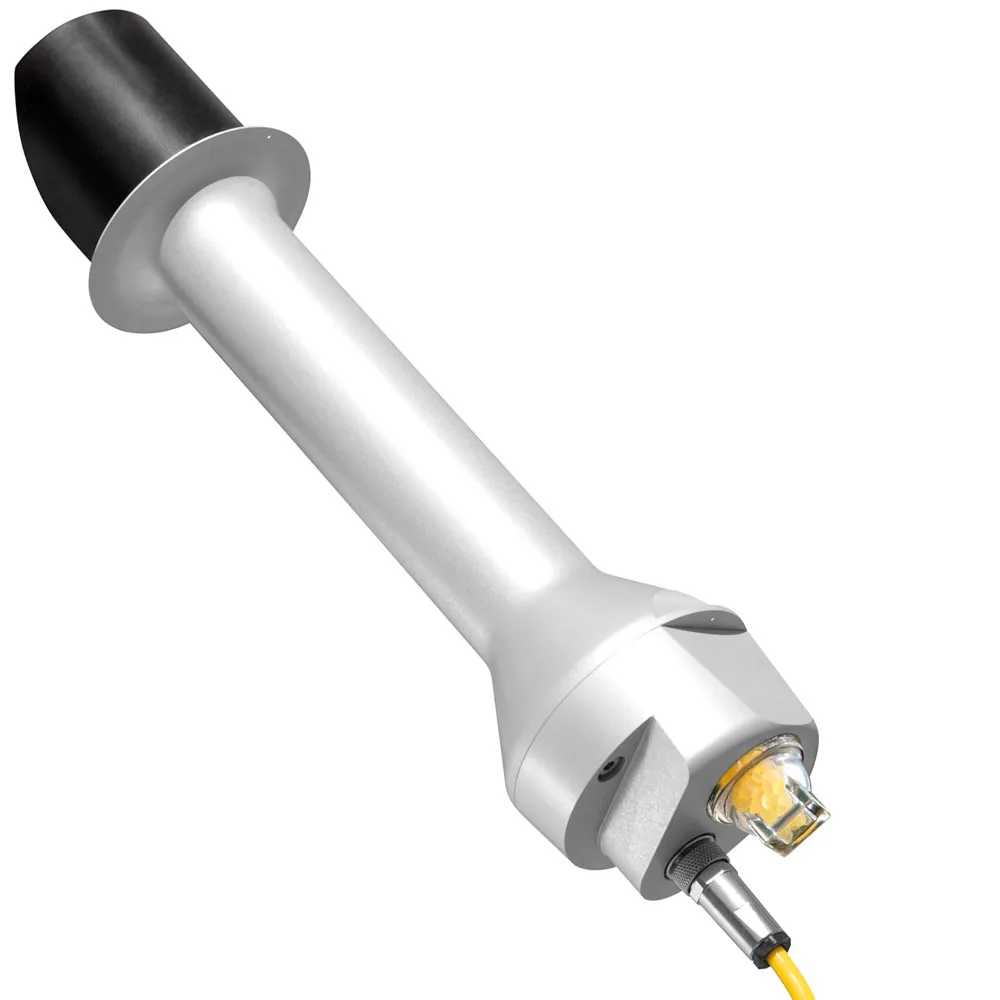

SHP1 Pyrheliometer from Kipp & Zonen
The SHP1 is Kipp & Zonen's smart pyrheliometer for measuring direct normal irradiance, combining an amplified analogue output with a digital RS-485 Modbus interface.
- Supply
- 5 to 30 VDC
- Spectral range
- 200 to 4000 nm (50% points)
- Response time (95%)
- <2 s
Overview
In detail
How it works
The SHP1 measures direct normal solar irradiance with extremely low power consumption, so internal heating does not affect detector performance, and individually measured temperature correction from -40°C to +70°C. It meets ISO 9060 Spectrally Flat Class A performance.
Connectivity
Both an amplified analogue output (0-1V or 4-20mA version) and a 2-wire RS-485 Modbus (RTU) digital output are available. SmartExplorer software is used for configuration.
Power
The sensor operates from a wide 5 to 30 VDC supply and is protected against reversed polarity, over-voltage and short circuits, making it suited to power-critical applications. It carries a 5-year warranty.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 200 to 4000 nm (50% points)
- Response time (95%)
- <2 s
- Response time (63%)
- <0.7 s
- Analogue output
- 0-1V or 4-20mA (version dependent)
- Digital output
- 2-wire RS-485 Modbus (RTU)
- Supply voltage
- 5 to 30 VDC
- Accuracy
- ISO 9060 First (Spectrally Flat Class A)
- Temperature dependence of sensitivity
- <0.5% (-30°C to +60°C)
