Shear Vane Tester portable field kit - H-60
The H-60 is Roctest's hand-held field vane tester for a quick, in-situ estimate of the undrained shear strength of soft-to-stiff clays, used to check the stability of foundations, excavations and trenches.
- Range
- 0-60, 0-130 or 0-260 kPa, depending on vane
- Vane sizes
- 16x32mm, 20x40mm, 25.4x50.8mm
- Weight
- 0.4kg (instrument), 0.3kg per extension rod
Overview
In detail
How it works
The field vane shear test is the most common method for measuring the undrained shear strength of soft to stiff clays. The H-60 provides quick, repeatable strength readings via interchangeable vanes and 0.5m extension rods, with a peak value read from a scale-ring that is reset to zero before each test.
Deployment

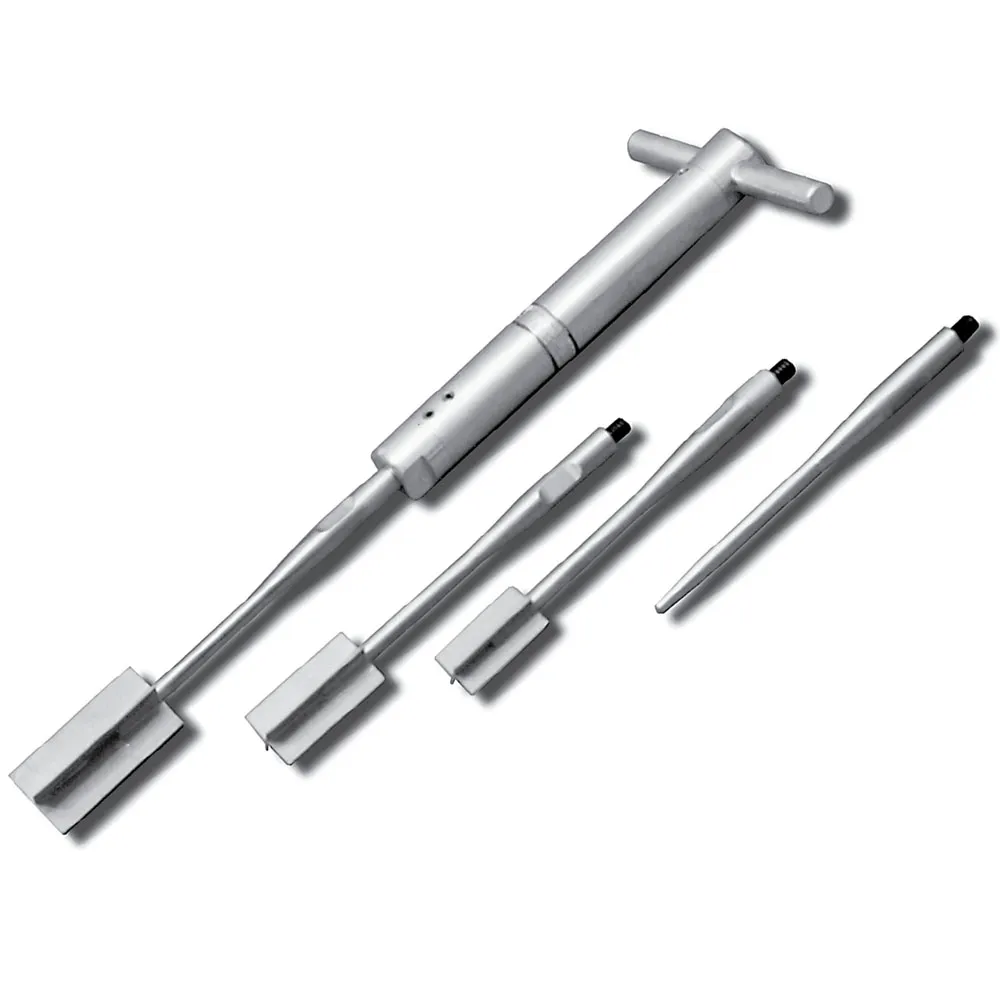

Penetration to 1-2m below the surface is possible in stiffer clays, with measurements down to 3m documented in soft clay. The instrument is robust enough to be used as its own handle for pushing and retracting the vane, and the full kit — three vanes, a dummy vane, wrenches and case — is compact enough to carry as a field kit.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0-60, 0-130 or 0-260 kPa, depending on vane
- Vane sizes
- 16x32mm, 20x40mm, 25.4x50.8mm
- Weight
- 0.4kg (instrument), 0.3kg per extension rod
- Penetration depth
- 1-2m in stiff clay, up to 3m in soft clay
