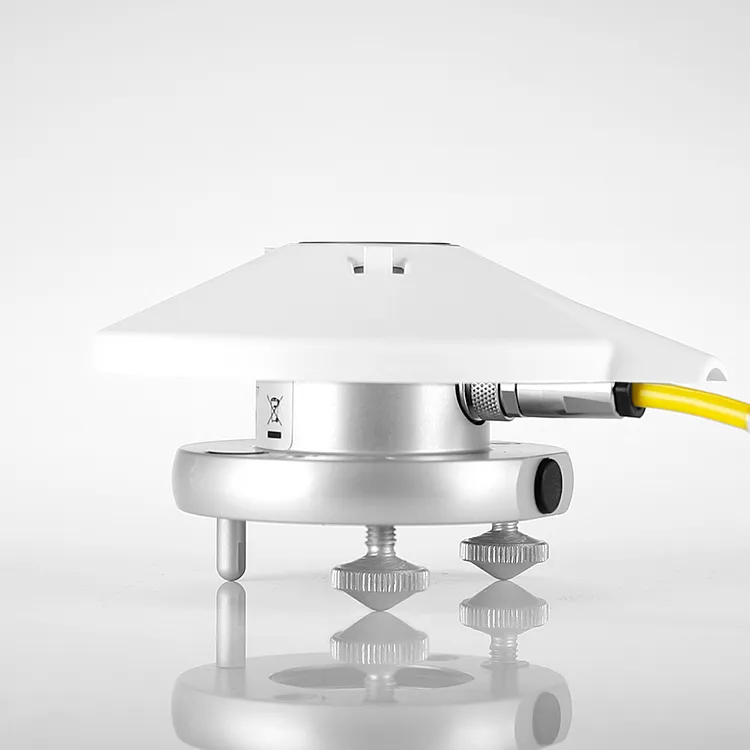

SGR4 Pyrgeometer
The SGR4 is Kipp & Zonen's top-tier pyrgeometer for measuring downward longwave radiation, with an RS-485 Modbus interface and an amplified analogue output.
- Supply
- 5 to 30 VDC
- Spectral range
- 4.4 to 50 µm (4400-50000 nm)
- Response time (95%)
- 18 s
Overview
In detail
How it works
The SGR4 measures downward longwave radiation across a 4.4 to 50 micron spectral band, with temperature-corrected measurement data and improved response time compared to earlier pyrgeometers. Long-wave net and downward radiation values are available directly over Modbus.
Connectivity
The sensor provides a 2-wire RS-485 Modbus digital interface alongside an amplified analogue output (4-20mA or 0-1V depending on version).
Power
A wide 5 to 30 VDC supply range simplifies integration into meteorological and solar energy monitoring stations. The SGR4 is robust and carries a 5-year warranty.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 4.4 to 50 µm (4400-50000 nm)
- Response time (95%)
- 18 s
- Operating temperature
- -40 to +80°C
- Supply voltage
- 5 to 30 VDC
- Analogue output
- 4-20mA / 0-1V (version dependent)
- Digital output
- 2-wire RS-485 Modbus
- Field of view
- 180°
- Non-linearity
- <1%
- Window heating offset
- <4 W/m²
- Zero offset B
- <2 W/m²
- Temperature dependence of sensitivity
- <1% (-20°C to +50°C)
