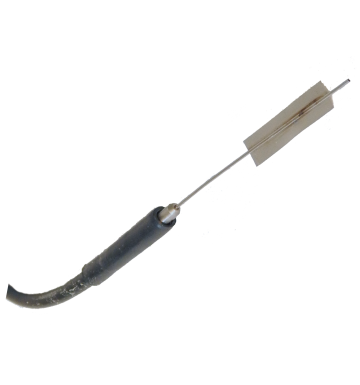

SFO-W Spot Weldable Strain Sensor
The SFO-W is a spot-weldable fibre-optic strain sensor — a stainless-steel tube welded onto a steel sheet — for long-term, precise strain measurement on flat or cylindrical steel structures.
- Range
- ±1500 microstrain
- Operating temperature
- -40 to +55°C
- Resolution
- 0.01% of full scale
Overview
In detail
How it works
A Fabry-Perot fibre-optic strain gauge is bonded inside the sensor's small-diameter stainless-steel tube, so it follows the tensile or compressive movement transmitted through the spot-welded tube. Because the sensing element is optical, the SFO-W is intrinsically immune to electromagnetic interference.
Deployment
The gauge is spot-welded directly onto flat or cylindrical steel surfaces and can be installed by a technician without a skilled welder, making it suited to long-term structural strain monitoring.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
- Part number
Specifications
Technical specifications
- Range
- ±1500 microstrain
- Operating temperature
- -40 to +55°C
- Resolution
- 0.01% of full scale
- Gauge dimensions
- 50.8 x 1.1 x 4.7mm (L x T x W)
- Cable
- CAF-UD3-1F fibre-optic cable, ST connector, 2m minimum length
