EC-1550 Salinity Electrical Conductivity Sensor
The EC-1550 is a digital conductivity and temperature sensor built for low-power, low-maintenance monitoring in water and environmental applications. Its encapsulated toroid design avoids the fouling and corrosion issues of electrode-based conductivity cells.
- Range
- 500 to 70,000 µS/cm standard (to 75,000 µS/cm on request), factory-calibrated
- Output
- 4-20mA (EC & temperature) or SDI-12 digital
- Supply
- 9-30VDC
Overview
In detail
How it works
The EC-1550 uses magnetic inductive coupling (a toroid) rather than a conventional electrode cell, so there is no direct contact between electrodes and the fluid. This removes the corrosion and fouling problems of electrode-based sensors and means the sensor can operate for years without recalibration. A delrin-tube body and embedded temperature sensor further protect against degradation.
Measurement
The full-scale range is specified and calibrated at the factory from a choice of standard ranges between 500 and 70,000 µS/cm (up to 75,000 µS/cm on request), and the temperature sensor can be factory-set to compensate the EC output. Response time is 2 seconds to full accuracy.
Connectivity
The sensor outputs uncompensated 4-20mA EC and temperature signals, or SDI-12 digital data, over cable runs of more than 500m. It draws under 5mA in sleep mode and around 70mA while taking a reading.
Deployment
The EC-1550 is supplied with a sealed cable of customer-specified length, or with an optional waterproof socket and matching plug, and is designed for installations where site access is limited.
Reach out and say hi
Specifications
Technical specifications
- Range
- 500 to 70,000 µS/cm standard (to 75,000 µS/cm on request), factory-calibrated
- Accuracy
- EC linearity <2% of full scale; temperature <0.2°C (0-30°C)
- Operating temperature
- 0 to 50°C (storage -10 to 60°C)
- Output
- 4-20mA (EC & temperature) or SDI-12 digital
- Supply voltage
- 9-30VDC
- Response time
- 2 seconds to full accuracy
- Dimensions
- 262mm long x 56mm diameter
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the EC-1550 — no login, no paywall.
Related
Often specified alongside

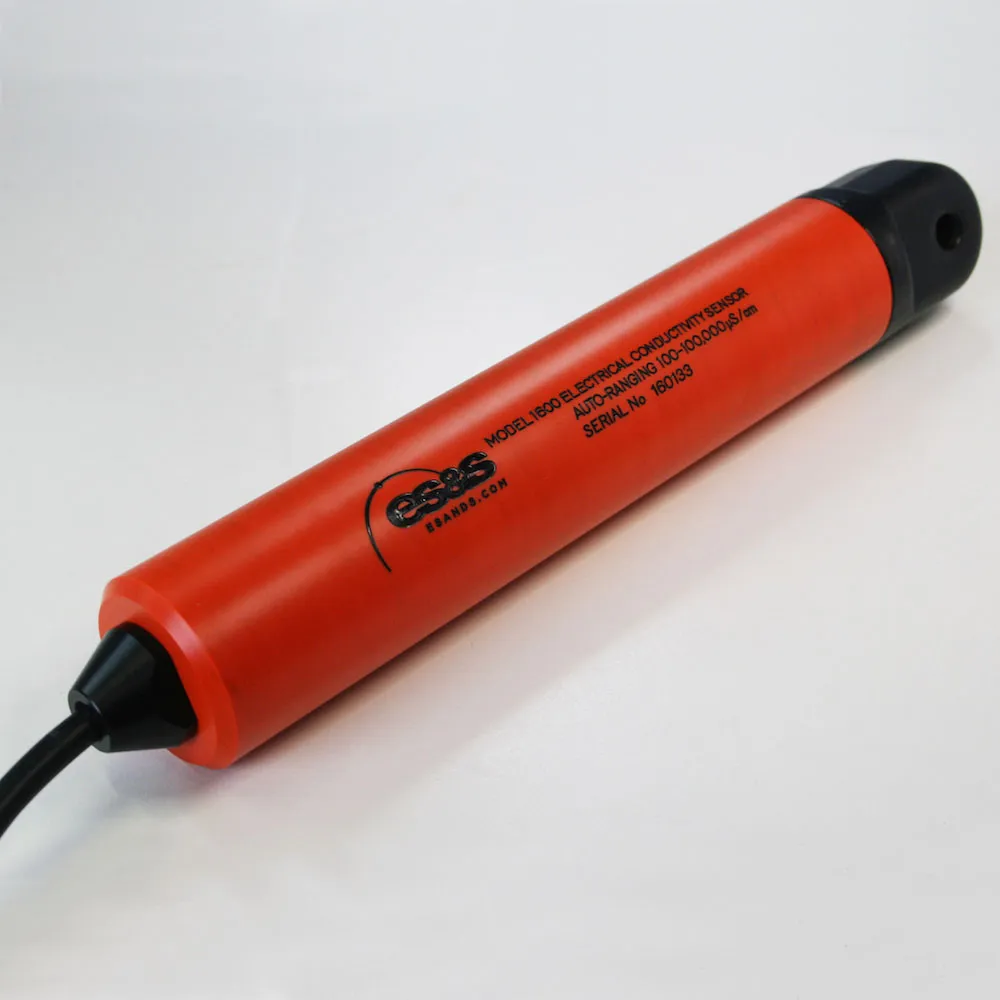

- Range
