RT1 Rooftop PV Monitoring Sensor
The RT1 is an affordable rooftop solar monitoring sensor that combines a pyranometer and a back-of-panel temperature probe, designed to mount on the corner of a commercial rooftop PV array for plane-of-array irradiance monitoring.
- Range
- 0 to 2000 W/m² (irradiance)
- Output
- RS-485 Modbus
- Supply
- 5 to 30 VDC
Overview
In detail
How it works

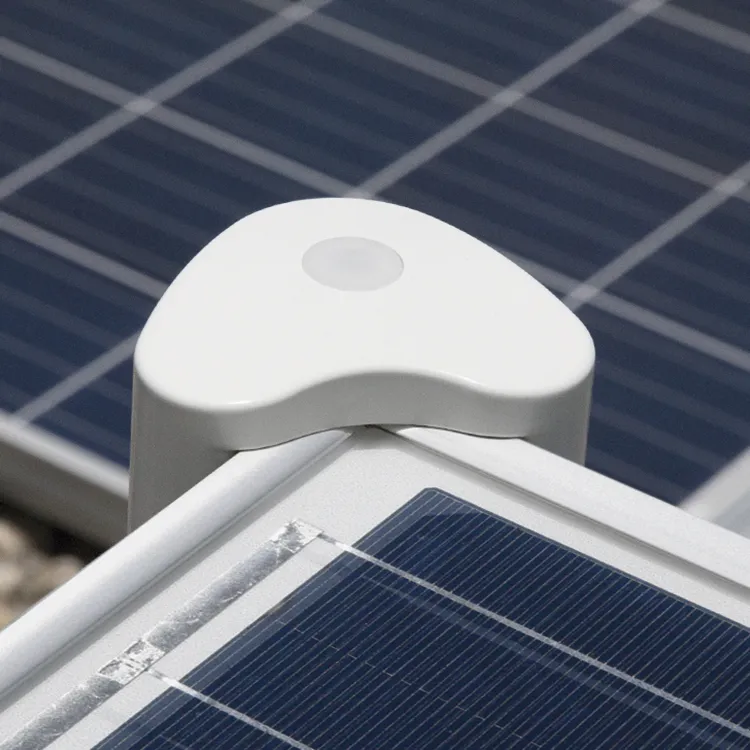

Mounted on the corner of a rooftop solar panel, the RT1 measures plane-of-array irradiance alongside back-of-module temperature, letting operators assess a solar array's actual output against its expected output.
Deployment
Commercial-scale rooftop solar arrays are growing rapidly, some reaching the size of small utility-scale solar farms, yet performance monitoring has not always been a priority for them. Installing a full pyranometer such as an SMP6 or SMP10 is often not cost-effective for rooftop arrays, so the RT1 gives operators a lower-cost way to plan panel cleaning and maintenance checks.
Connectivity
An RS-485 Modbus output integrates the RT1 into any SCADA or monitoring system.
Measurement
The sensor delivers ISO 9060 Class C irradiance performance and ±1 °C panel temperature accuracy, calibrated against a traceable reference pyranometer.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 0 to 2000 W/m² (irradiance)
- Resolution
- 1 W/m²
- Spectral range
- 400 to 1100 nm
- Output
- RS-485 Modbus
- Operating temperature
- -40 to +80 °C
- Supply voltage
- 5 to 30 VDC
- PV panel temperature
- -20 to +100 °C, ± 1 °C
- Power consumption
- 60 mW
- Non-linearity
- < 1% (0 to 100 W/m²)
- Calibration
- Against traceable reference pyranometer
