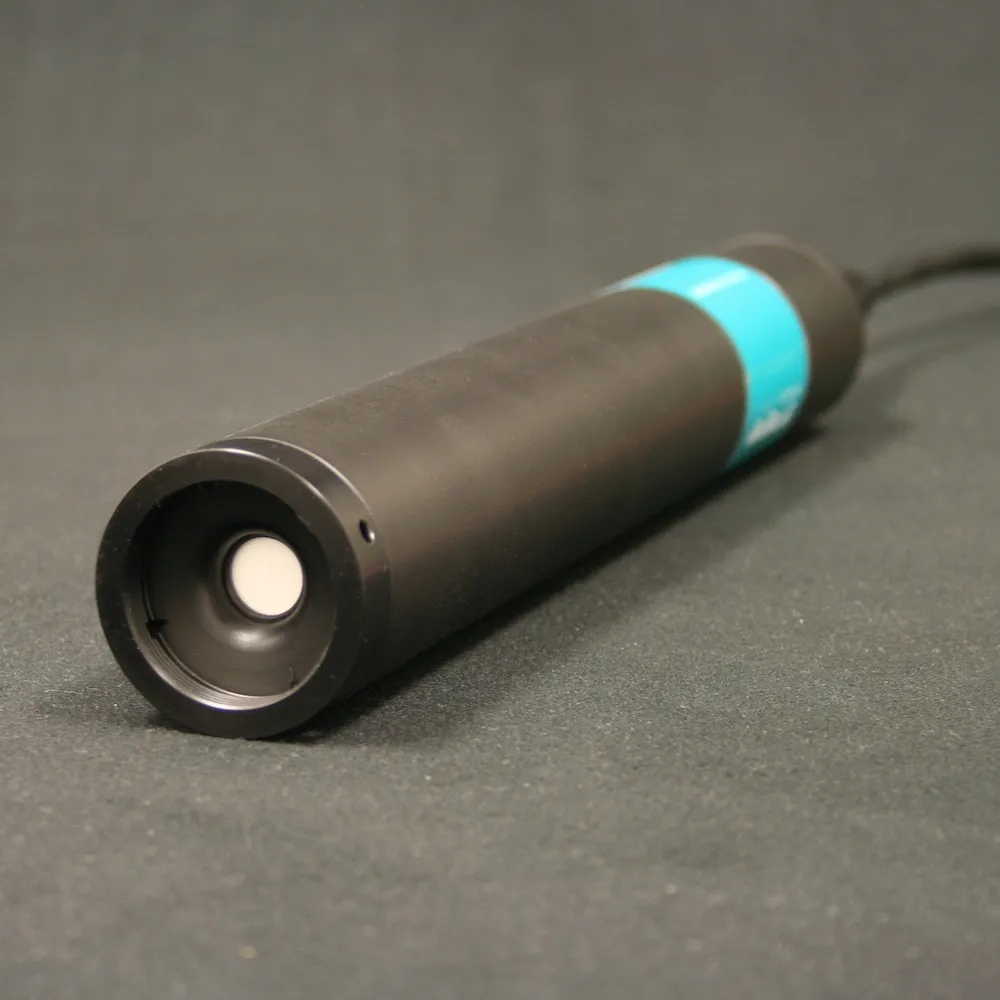

PS-1000A Water Level Pressure Sensor
The Greenspan PS-1000A is an Australian-made, submersible pressure sensor that measures water pressure to deduce water level, giving a standard 4-20mA loop-powered output built to withstand harsh field conditions.
- Range
- Gauge: 2.5, 5, 10, 20, 40, 75, 100 m; Absolute: 20, 40, 75, 100 m
- Output
- 4-20mA or 0-2.5V DC
- Supply
- 8-30 V DC (loop powered)
Overview
In detail
How it works
The PS-1000A is submersed in a liquid, where a sensitive sensor measures water pressure and deduces the water level from the reading. It has a standard 2-wire, loop-powered, 4-20mA output, with an option for 0-2.5V DC. A durable, corrosion-resistant Acetal body, ceramic capacitance transducer, and double O-ring sealing suit it for harsh environments, from outback heat to freezing mountain conditions.
Upgrade path
The PS-1000A can be upgraded to a PS-1000L, which adds internal data logging via an RS-232 interface, with an optional SDI-12 adaptor for communication with other systems. Both sensors are assembled and tested in accordance with Greenspan's ISO 9001 Quality Certified System.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- Gauge: 2.5, 5, 10, 20, 40, 75, 100 m; Absolute: 20, 40, 75, 100 m
- Output
- 4-20mA or 0-2.5V DC
- Supply voltage
- 8-30 V DC (loop powered)
- Accuracy
- 0.1% FS
- Dimensions
- 328 mm x 47 mm (12.91" x 1.85")
- Sensor technology
- ½" ceramic capacitance transducer
- Long-term stability
- Better than 0.2% per annum
- Body
- Acetal, double O-ring sealed, moulded cable gland
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the PS-1000A — no login, no paywall.
