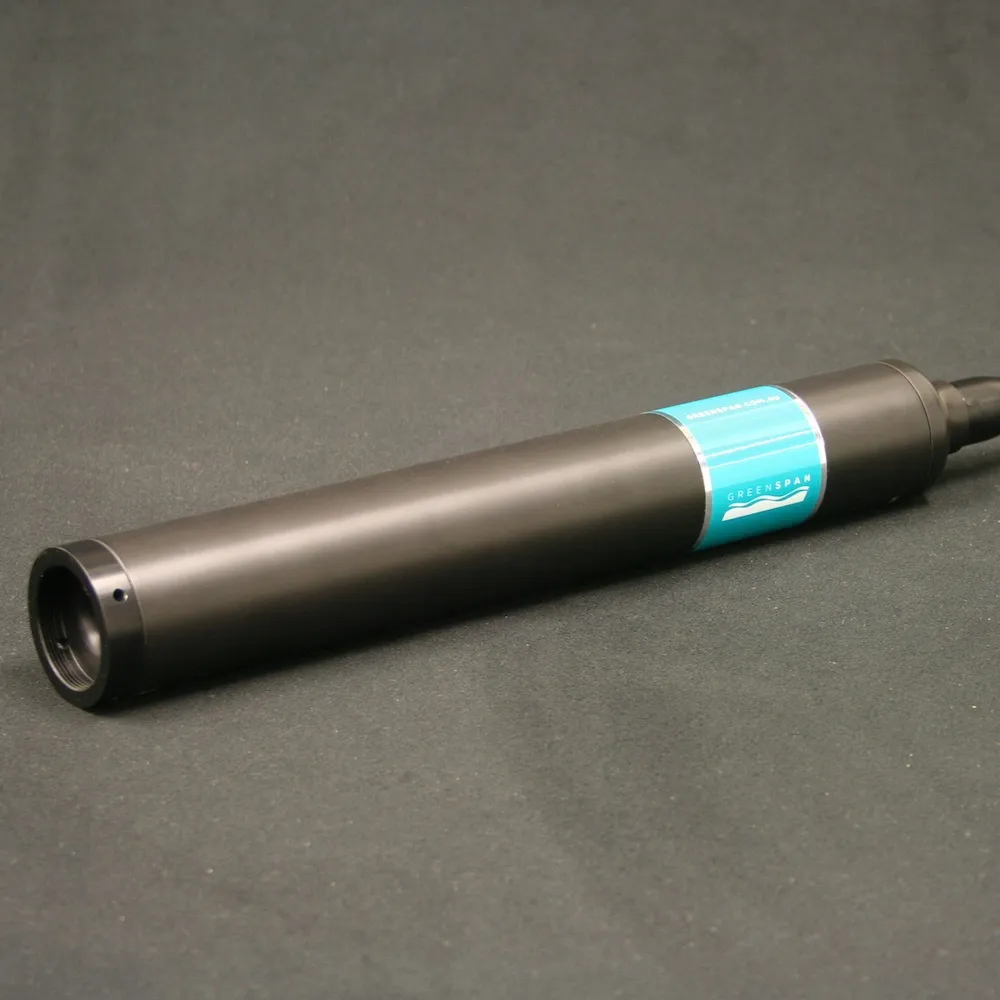

PS-1000L Water Level Pressure Sensor
The Greenspan PS-1000L is an Australian-made, fully submersible logging water level pressure sensor designed for remote applications, using a capacitive ceramic pressure-sensitive diaphragm and an internal data logger.
- Range
- Gauge: 2.5, 5, 10, 20, 40, 75, 100 m; Absolute: 20, 40, 75, 100 m
- Output
- Internal data logger (RS-232 via SensorMate); optional SDI-12 adaptor
- Supply
- 8-30 V DC, or optional internal battery pack
Overview
In detail
How it works
A sophisticated capacitive ceramic pressure-sensitive diaphragm measures water pressure; an electronic circuit converts the variation into an analogue output. The sensor's body is made from robust, corrosion-resistant Acetal, fully sealed against moisture penetration and hardwired to the supplied cable. It offers high overload protection, up to 60 times its nominal pressure, along with corrosion resistance and long-term stability.
Data logging
An internal, non-volatile, battery-backed data logger with a real-time clock stores readings, with 4 Mb of memory typically holding around 250,000 readings (more than 12 months of data at 5-minute intervals). Data is read via SensorMate software, and an optional adaptor provides a 3-wire SDI-12 serial output.
Options
An SDI-12 adaptor and an internal battery power supply are both available as optional extras.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- Gauge: 2.5, 5, 10, 20, 40, 75, 100 m; Absolute: 20, 40, 75, 100 m
- Accuracy
- ±0.1% Full-Scale range
- Output
- Internal data logger (RS-232 via SensorMate); optional SDI-12 adaptor
- Supply voltage
- 8-30 V DC, or optional internal battery pack
- Current consumption
- Sleep <0.2 mA, logging 20 mA, communicating 30 mA
- Memory
- 4 Mb, ~250,000 readings (>12 months at 5-minute intervals)
- Dimensions
- 393 mm x 47 mm (L x OD)
- Overload protection
- Up to 60 x nominal pressure
- Sensor technology
- ½" ceramic capacitance transducer
