PAWS Portable Automated Weather Station
The PAWS (FTS Quick Deploy portable weather station) is a fire-community-grade automated weather station that one person can set up in 15 minutes with no tools, delivering the same scientific-grade sensors and telemetry as a fixed RAWS in a fully portable form.
- Ingress
- IP67 (data logger)
- Setup time
- 15 minutes, one person, no tools
- Wind rating
- Gusts to 100 mph
Overview
In detail
How it works

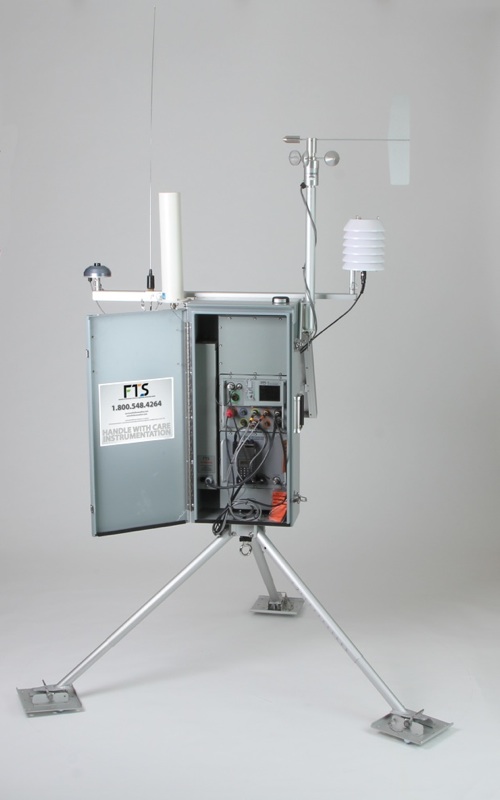

The station ships pre-configured to the customer's specification, so it works without a laptop or antenna alignment. All-metal construction (no plastic components) and a sealed IP67 data logger with military-grade, lightning-protected connectors let it withstand rugged fireline conditions and wind gusts up to 100 mph.
Deployment
Fully interchangeable with fixed RAWS sensors and telemetry, the Quick Deploy can be accessorised with a portable 10 m mast kit, carried in a wheeled hard case, for simultaneous ground and 10 m wind measurements, guy-roped to the terrain for stability. Multiple units can be placed along a fireline and rapidly relocated as conditions change.
Measurement
Standard sensors cover temperature/RH, tipping-bucket rainfall, wind speed and direction, and solar radiation.
Connectivity
Telemetry options include GOES satellite (North America), Iridium satellite (broader/international coverage) and an optional cellular modem. ESS Earth Sciences distributes the FTS (an AEM brand) fire-weather monitoring range in Australia.
Reach out and say hi
Specifications
Technical specifications
- Ingress
- IP67 (data logger)
- Setup time
- 15 minutes, one person, no tools
- Wind rating
- Gusts to 100 mph
- Connectivity
- GOES satellite, Iridium satellite, optional cellular modem
- Sensors
- Temperature/RH, tipping-bucket rain gauge, wind speed/direction, solar radiation
- Mast option
- 10 m portable mast kit in wheeled hard case
