ORP-1000A Oxidation Reduction Potential Sensor

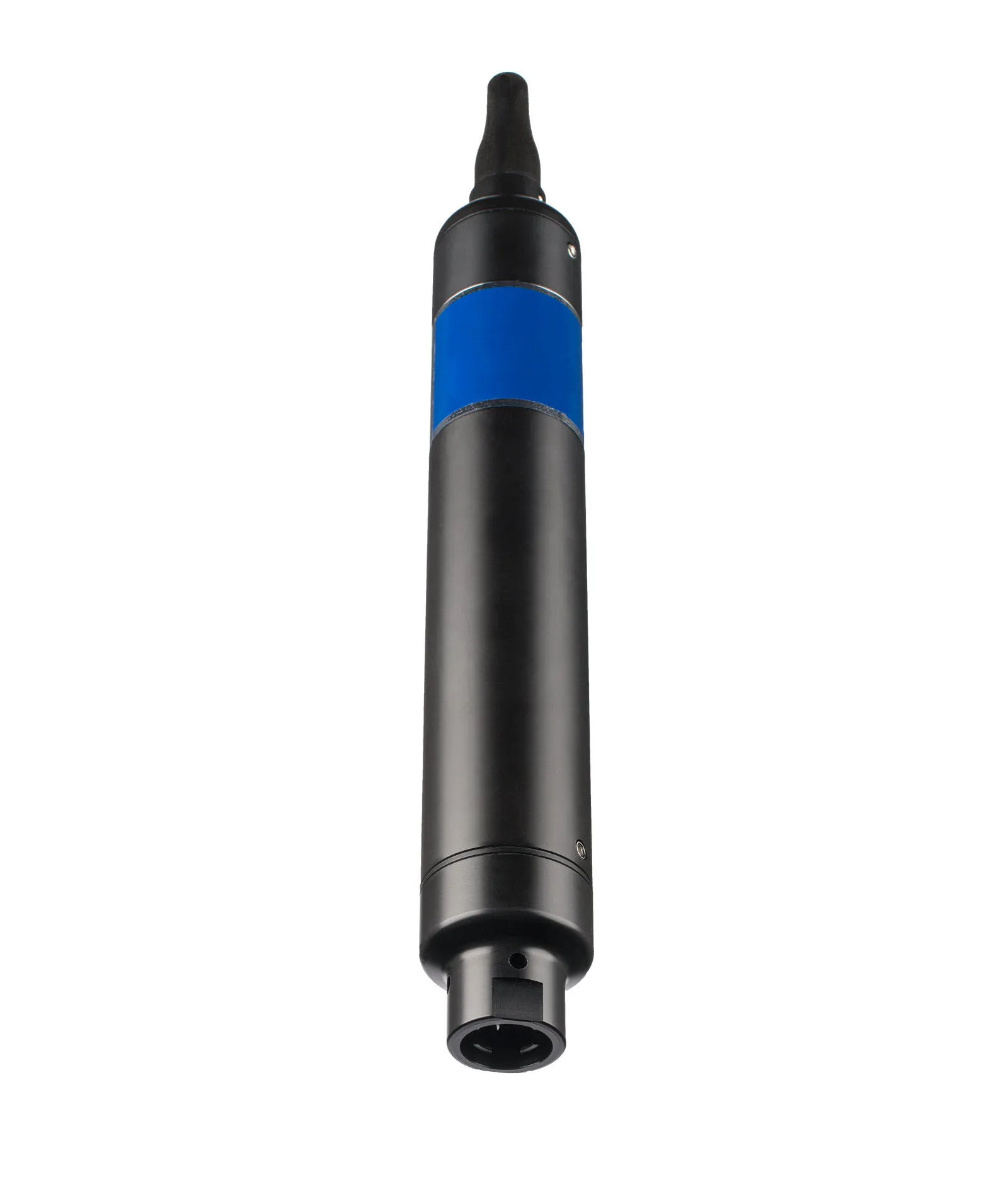

The Greenspan ORP-1000A is a fully submersible oxidation-reduction potential (ORP) sensor designed and manufactured in Australia, providing a calibrated 4-20 mA output on low-voltage power; an internal-logger version is available as the ORP-1000L.
- Range
- ±500 mV, ±1000 mV, 0-1000 mV (factory calibrated)
- Output
- Analogue 4-20 mA
- Supply
- 11-13.2 V DC
Overview
In detail
How it works
A platinum electrode with an internal reference measures oxidation-reduction potential and outputs a calibrated 4-20 mA analogue signal; the electrode is field replaceable, and a replaceable reference protection ring guards against fouling.
Features
Optically isolated signal conditioning, a robust easy-clean design and low power requirements suit a wide operating temperature range. An internal logger can be fitted to convert the unit into the logging ORP-1000L model.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- ±500 mV, ±1000 mV, 0-1000 mV (factory calibrated)
- Output
- Analogue 4-20 mA
- Supply voltage
- 11-13.2 V DC
- Dimensions
- 364.5 mm × 47 mm (L × OD)
- Measurement technique
- Platinum electrode with internal reference, field replaceable
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the ORP-1000A — no login, no paywall.
