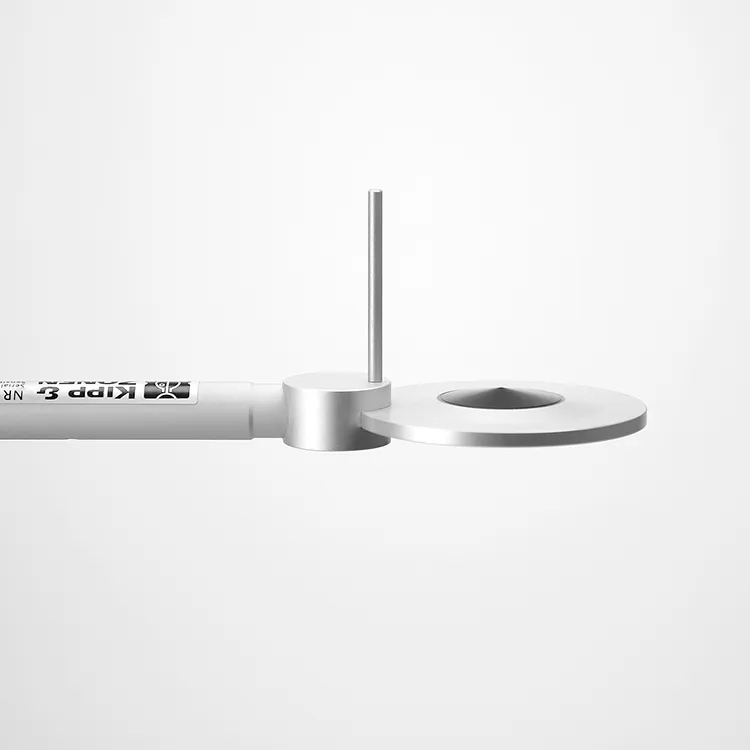

NR Lite2 Net Radiometer
The NR Lite2 is a double-sided net radiometer that measures net radiation — the balance between incoming and outgoing radiation — using a thermopile detector under black PTFE-coated conical absorbers, with no fragile domes to maintain.
- Output
- 10 µV/W/m² sensitivity
- Spectral range
- 0.2 to 100 µm (200 to 100,000 nm)
- Response time
- < 20 s
Overview
In detail
How it works
Two black PTFE-coated conical absorbers face up and down, each covering a thermopile detector; the output signal is the difference between incoming solar/sky radiation and outgoing ground radiation. The anti-stick, weather-resistant coating and dome-free design keep the sensor virtually maintenance-free.
Deployment
A vertical stick above the sensor deters birds from affecting the output signal, and the mounting rod is compatible with Kipp & Zonen CMB1 brackets for attaching to walls, flat surfaces or poles. The wide spectral response and rugged construction suit agricultural-meteorological, hydrological and climate-study deployments in harsh environments.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range
- 0.2 to 100 µm (200 to 100,000 nm)
- Output
- 10 µV/W/m² sensitivity
- Response time
- < 20 s
- Operating temperature
- -30°C to +70°C
- Detector type
- Thermopile with black PTFE-coated conical absorbers
- Mounting
- Rod compatible with Kipp & Zonen CMB1 brackets
