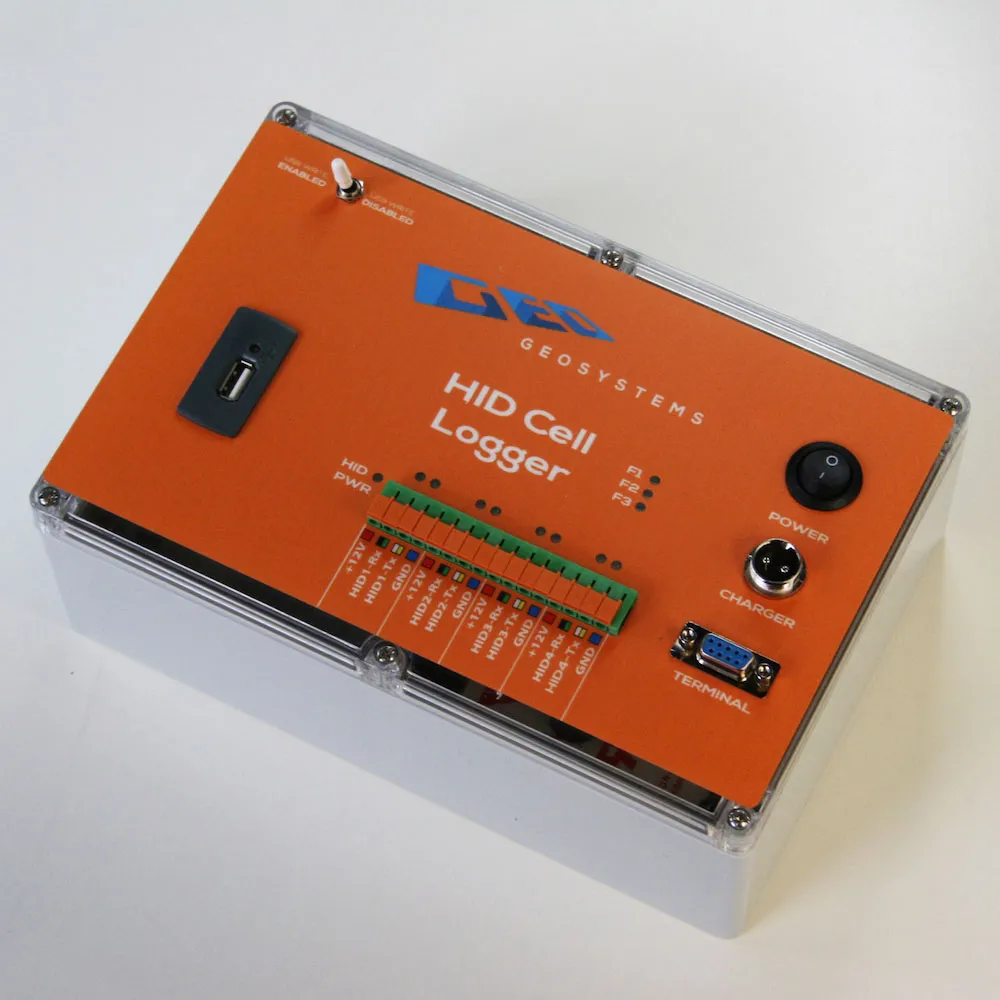

Multi-channel HID Cell Data Logger
The Multi Channel HID Cell Data Logger is a low-cost, plug-and-play device from ESS for unattended monitoring of up to four Digital HI (HID) Cell stress sensors, storing data directly to a swappable USB drive.
- Channels
- up to 4 (Digital HI/HID Cell inputs)
- Interface
- RS232 (compatible with most third-party sensors)
- Storage
- removable USB drive
Overview
In detail
How it works
The logger interfaces with most third-party RS232 sensors without requiring special code or programming. Sampling frequency is user-selectable, and data is written directly to a USB drive that can be swapped out in seconds.
Deployment
Suited to short-term logging in over-coring applications as well as long-term in-situ monitoring of stress change. The internal battery can be charged while the unit is operating and provides several days of backup power during mains outages.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Channels
- up to 4 (Digital HI/HID Cell inputs)
- Interface
- RS232 (compatible with most third-party sensors)
- Storage
- removable USB drive
- Power
- internal rechargeable battery, charges during operation; days of backup during outages
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the Multi-channel HID Cell Data Logger — no login, no paywall.
