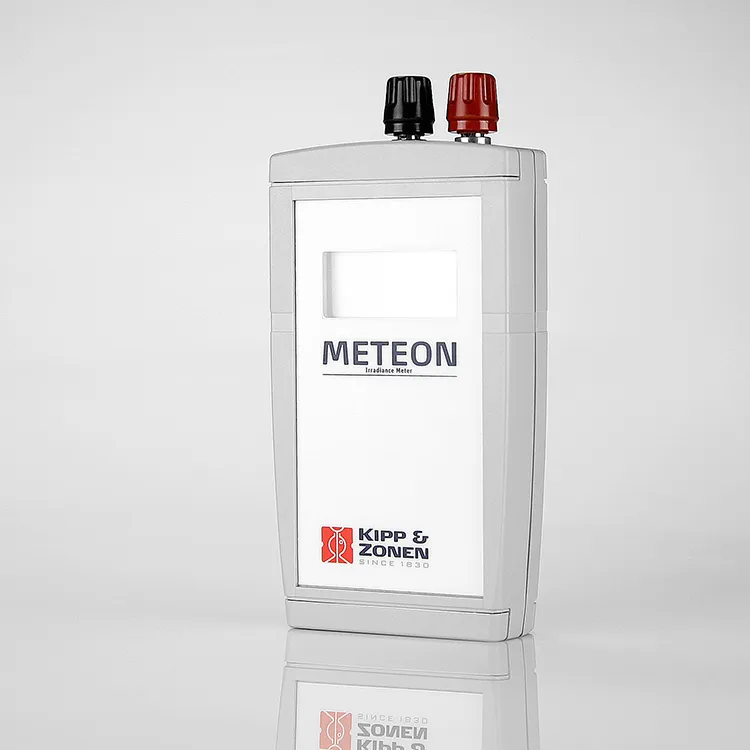

Meteon Data Logger
METEON is a handheld data logger from Kipp & Zonen used with a passive (non-powered) radiometer, such as a CMP pyranometer, to display and record solar irradiance measurements in the field.
- Accuracy
- ±0.1% (0.1 W/m2)
- Sampling rate
- 2 readings/second
- Memory
- up to 3500 samples
Overview
In detail
How it works
METEON takes a reading twice per second through a single bi-polar 16-bit analog input accepting 6.25–200 mV, and displays real-time solar irradiance in W/m2 or PAR in µmol/m2.s on a 4-digit display. It is compatible with CMP pyranometers, CM4, SP Lite2, NR Lite2, CUV5 and PQS1 sensors.
Data logging
Logging interval is user-selectable, storing up to 3500 samples in non-volatile memory that survives power loss or a battery change. Data can be downloaded while the logger continues recording, and the bundled software plots average irradiance graphically or exports to spreadsheets.
What's included
METEON ships in a carrying case with 2 x AA alkaline batteries (up to 50 days of continuous logging), a USB interface cable and configuration software. It can also be supplied pre-configured as a package with a radiometer, ready to use out of the box.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Accuracy
- ±0.1% (0.1 W/m2)
- Sampling rate
- 2 readings/second
- Memory
- up to 3500 samples
- Battery life
- 50 days on 2 x AA batteries
- Input
- single bi-polar analog input, 6.25–200 mV range
Related
Often specified alongside
Weathertech

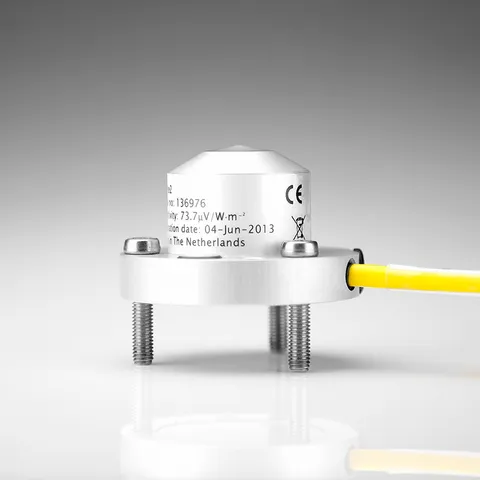

SP Lite2 Pyranometer
