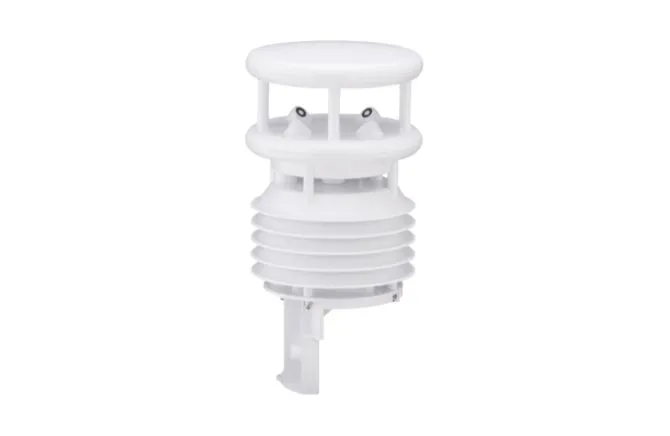

Lufft WS500 Compact Weather Sensor
The Lufft WS500 is a compact all-in-one weather sensor measuring air temperature, relative humidity, air pressure, and wind speed/direction via ultrasonic sensing, in a single WMO-compliant unit with no moving parts.
- Range
- -50 to 60 °C
- Output
- RS485 Modbus (SDI-12 optional)
- Ingress
- IP66
Overview
In detail
How it works
The WS500 combines temperature, humidity, air pressure and ultrasonic wind speed/direction sensing behind an aspirated, heated radiation shield, giving WMO-compliant accuracy with no moving parts. Data processing is built in, and the sensor is rated -50 to +60°C for use in all climates. It is compliant to IEC 61724-1:2017.
Connectivity
Ships standard with RS485 Modbus communications; SDI-12 is available on request at time of order. The open protocol (UMB-Binary, UMB-ASCII, Modbus-RTU/ASCII, XDR, SDI-12) is compatible with most commercial Met/HydroMet dataloggers and PLC systems.
Mounting & options
Mounts directly onto a 60 mm diameter pole using the supplied 'U' brackets, or via an optional mounting arm for 40-80 mm poles. An external temperature probe (for back-of-panel PV temperature) and the Lufft WTB100 rain gauge are available as options.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- -50 to 60 °C
- Operating temperature
- -50 to 60°C (with heater)
- Accuracy
- ±0.2 °C (-20 to 50 °C), otherwise ±0.5 °C (>-30 °C)
- Ingress
- IP66
- Supply voltage
- 11-32 VDC standard (5-11 VDC reduced-accuracy mode); 24 VDC ±10% for heater
- Output
- RS485 Modbus (SDI-12 optional)
- Humidity range
- 0-100% RH
- Humidity accuracy
- ±2% RH
- Air pressure range
- 300-1200 hPa
- Air pressure accuracy
- ±0.5 hPa (0-40 °C)
- Wind speed range
- 0-75 m/s
