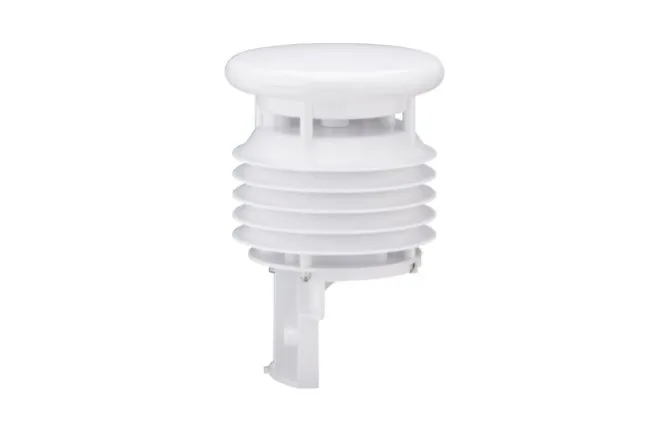

Lufft WS300 Weather Sensor
The Lufft WS300 is a compact, all-in-one sensor that measures air temperature, relative humidity and air pressure, protected by a radiation shield to WMO-compliant accuracy. It has no moving parts and is built for high-end applications across a -50 to +60°C climate range.
- Ingress
- IP66
- Supply
- 4 to 32 VDC; 24 VDC ±10%
- Dimensions
- Ø approx. 150 mm, height approx. 223 mm
Overview
In detail
How it works
The WS300 measures air temperature, relative humidity and air pressure with all sensors protected by a radiation shield for accuracy and to meet WMO guidelines. With no moving parts and built-in data processing, it is robust and easy to use across all climates. It ships as standard with Modbus communications; SDI-12 output can be supplied on request, and an optional external temperature probe can be fitted, for example as a back-of-module temperature sensor in PV solar applications.
Mounting
The sensor mounts directly onto a 60 mm diameter pole using the supplied 'U' mounting brackets, or via an optional mounting arm that attaches to 40-80 mm diameter poles.
Connectivity
Communication is via an RS485 interface supporting UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR or SDI-12 protocols, giving compatibility with most commercially available Met/HydroMet data loggers and PLC systems through an open communication protocol. An external temperature probe or a Lufft WTB100 rain gauge can be added as optional extras.
Reach out and say hi
Specifications
Technical specifications
- Dimensions
- Ø approx. 150 mm, height approx. 223 mm
- Weight
- Approx. 1 kg
- Interface
- RS485, 2-wire, half-duplex
- Supply voltage
- 4 to 32 VDC; 24 VDC ±10%
- Power consumption
- 135 mA at 24 VDC (approx. 3.25 W)
- Operating temperature
- -50 to 60°C
- Operating relative humidity
- 0 to 100% RH
- Cable length
- 10 m
- Ingress
- IP66
- Standards
- Compliant to IEC 61724-1:2017
- Mast mounting
- Suitable for mast diameter 60-76 mm
