Logging Turbidity Sensor TS-1000L
The Greenspan TS-1000L is an Australian-made logging turbidity sensor with an integrated data logger and self-cleaning wiper, designed for long-term, low-power deployment at remote sites prone to bio-fouling or sedimentation. Turbidity measurement helps assess water quality by indicating scattered light levels within a water column.
- Range
- 100 NTU, 400 NTU or 1000 NTU (other ranges to order)
- Supply
- 8 to 30 V DC (at sensor), or on-board battery pack (option)
- Measurement technique
- 90° infra-red (ISO7027)
Overview
In detail
How it works
The TS-1000L measures turbidity using a 90° infra-red method conforming to ISO7027, and is available in 100 NTU, 400 NTU or 1000 NTU ranges (other ranges to order). Readings are recorded by an internal, non-volatile battery-backed data logger with real-time clock and retrieved via SensorMate software, or via an optional SDI-12 adaptor (3-wire serial). Memory capacity is 4 Mb, typically 250,000 readings (over 12 months at 5-minute intervals).
Deployment

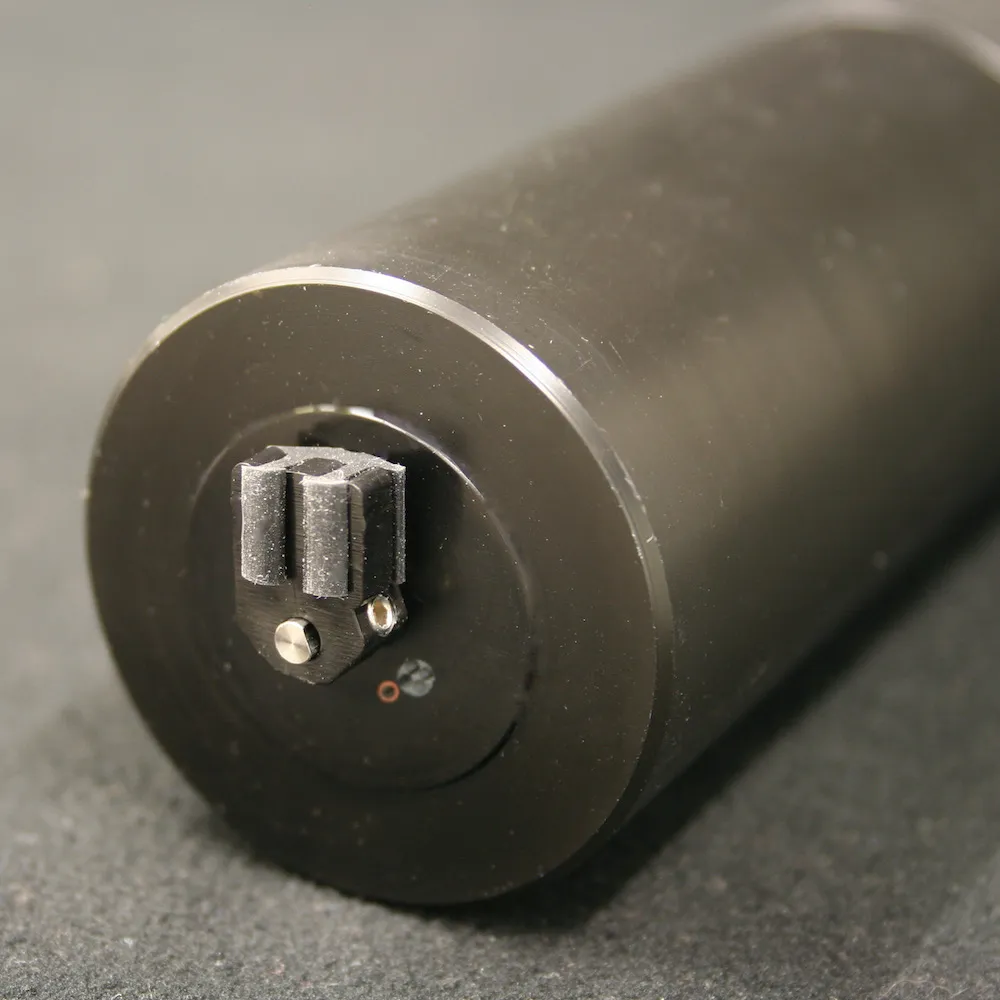

An integral wiper provides long-term reliable operation at sites where bio-fouling or sedimentation is likely, and a durable acetal body with double O-ring sealing suits harsh-environment and marine applications, including waterways with high sediment loads and acidic or salty conditions where stainless steel is unsuitable. The sensor is supplied with a moulded polyurethane cable and a field-replaceable wiper pad, and runs from an 8 to 30 V DC supply or an onboard battery pack, drawing under 0.2 mA on sleep, 20 mA while logging and 30 mA while communicating.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Measurement technique
- 90° infra-red (ISO7027)
- Range
- 100 NTU, 400 NTU or 1000 NTU (other ranges to order)
- Sensor outputs
- Internal data logger (serial via SensorMate software); optional SDI-12 adaptor (3-wire)
- Supply voltage
- 8 to 30 V DC (at sensor), or on-board battery pack (option)
- Current consumption
- Sleep <0.2 mA, logging 20 mA, communicating 30 mA
- Internal data logger
- Non-volatile, battery-backed RAM with real-time clock
- Memory size
- 4 Mb, typically 250,000 readings (>12 months at 5-minute intervals)
- Dimensions
- 486 mm x 47 mm (L x OD)
