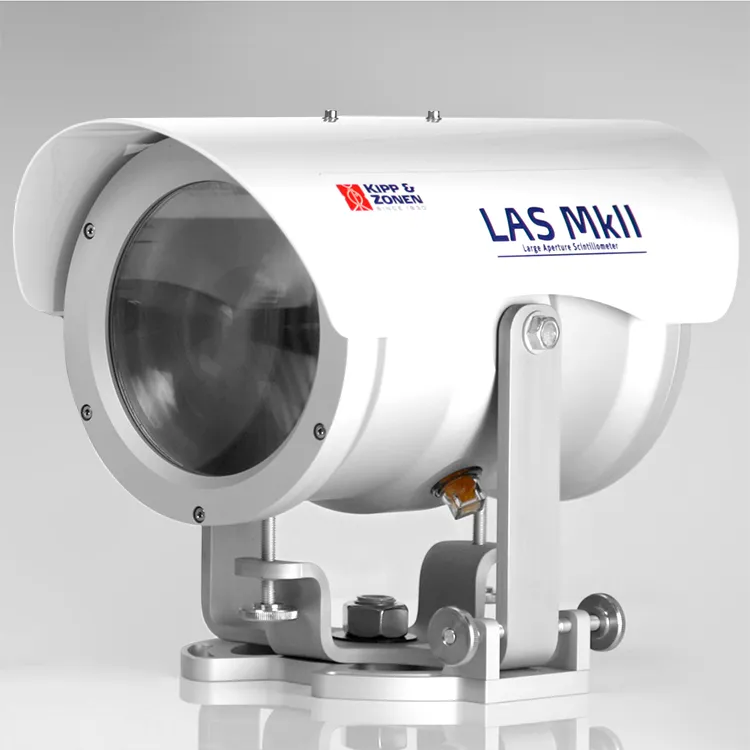

LAS Mkii Scintillometer
The LAS MkII is a large-aperture scintillometer that measures atmospheric turbulence over paths from 100 m to 4.5 km to derive sensible heat flux. It runs on a simple solar-charged battery, processes data internally with a built-in GPS-timed logger, and displays results in real time.
- Range
- 100 m to 1 km (10 cm aperture); 250 m to 4.5 km (15 cm aperture)
- Output
- digital RS-232/422; analogue 0 to 2.4 V
- Supply
- 12 VDC, 6 W (54 W max with heaters on)
Overview
In detail
How it works
The LAS MkII provides continuous measurements of sensible heat flux over path lengths from 100 m up to 4.5 km, deriving Cn2 and other turbulence parameters from atmospheric scintillation. It can be combined with a meteorological sensor kit for wind speed, temperature and pressure, which plugs directly into the LAS MkII receiver.
Data & control
Data is processed internally, including Cn2 and sensible heat flux, using a built-in data logger with GPS time. The instrument is controlled and displayed via an integrated display and keypad or remotely through a digital interface, with EVATION software for instrument control and data analysis.
Power
The measurement process is straightforward and yields fast results, and requires only limited power, so a simple solar-charged battery is usually sufficient.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 100 m to 1 km (10 cm aperture); 250 m to 4.5 km (15 cm aperture)
- Supply voltage
- 12 VDC, 6 W (54 W max with heaters on)
- Output
- digital RS-232/422; analogue 0 to 2.4 V
- Wavelength
- 850 nm
- Scintillation bandwidth
- 10⁻¹⁷ to 10⁻¹¹
- Dimensions
- 400 x 300 x 240 mm, 8.5 kg
