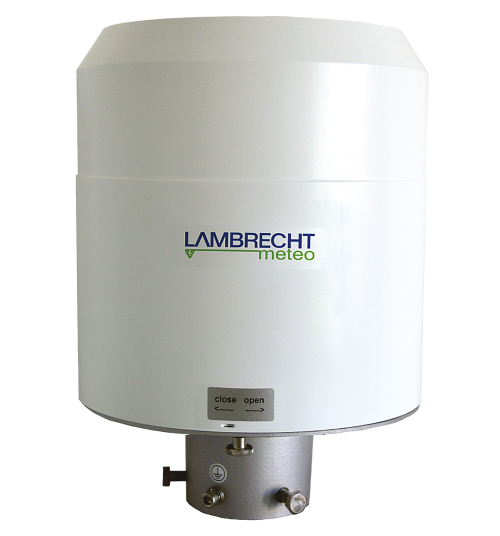

Lambrecht Rain Gauge Rain E 400
The Lambrecht rain[e]400 is a precipitation sensor that combines a self-emptying tipping-bucket mechanism with load-cell weighing to deliver 0.001 mm resolution rainfall measurement year-round without antifreeze fluid. It outputs via SDI-12, RS-485, pulse, status and 4-20 mA for integration with standard dataloggers.
- Output
- SDI-12, RS-485, pulse, status, 0/4-20 mA
- Ingress
- IP67
- Supply
- 9.8 to 32 VDC (unheated); 24 VDC (heated)
Overview
In detail
How it works
The rain[e]400 combines the traditional tipping-bucket approach with load-cell weighing precision to give a resolution of 0.001 mm. Its unique self-emptying system allows single-drop measurement while maintaining that high resolution, and it operates through the entire year without antifreeze fluid, making it environmentally friendly and easy to maintain.
Outputs
The gauge provides SDI-12 and RS-485 (SDI-12, ASCII or TALKER protocol) digital outputs, two pulse outputs, a status output, and optional analogue 0/4-20 mA output.
Operating conditions
The all-metal housing is weatherproof to IP67 and durable, with a compact, low-weight, robust construction. The unheated model operates from 0 to +70 °C; a heated variant extends operation down to -40 °C for cold or mountain sites, with dual heating circuits for the hopper and the drain/tipping bucket.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Resolution
- 0.001 mm
- Accuracy
- ± 0.1 mm or ± 1% at < 3 mm/min, ± 2% at ≥ 3 mm/min
- Collection area
- 400 cm²
- Operating temperature
- 0 to +70 °C (unheated); -40 to +70 °C (heated)
- Supply voltage
- 9.8 to 32 VDC (unheated); 24 VDC (heated)
- Ingress
- IP67
- Output
- SDI-12, RS-485, pulse, status, 0/4-20 mA
