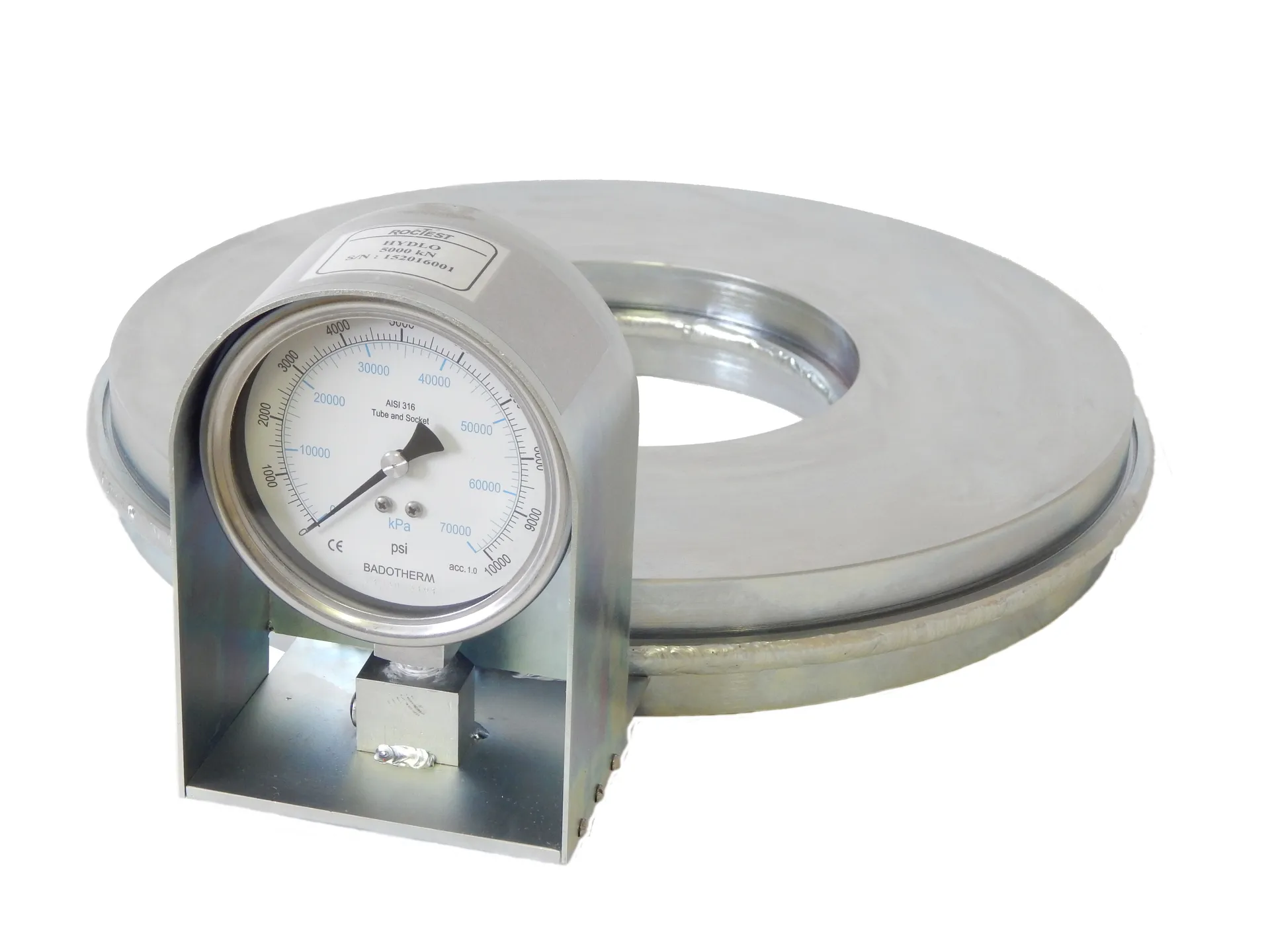

HYDLO Hydraulic Load Cell
The HYDLO Hydraulic Load Cell is a sealed, oil-filled cell that measures tensile or compressive load in tiebacks, rockbolts and structures via a directly connected pressure gauge, in six capacities from 250 kN to 2000 kN.
- Accuracy
- ±1% F.S.
- Operating temperature
- -20 to +60°C
- Overload
- 1.2 × F.S.
Overview
In detail
How it works
The HYDLO consists of two plates welded together around the periphery and filled with de-aired oil, directly connected to a pressure gauge scaled in kPa. Load applied to the cell induces an oil pressure variation sensed by the gauge, and the load value in kN is read from a table on the calibration sheet. Its compact size makes installation easy and readings quick and simple.
Configurations
Two configurations are available: a hollow-centre cell for monitoring tensile load, which allows an anchor to pass through the cell, and a solid-centre cell for monitoring compressive load. Both can be connected by flexible tubing to a remote vibrating-wire or electrical 4-20 mA pressure transducer for remote reading where cell access is difficult.
The HYDLO can accommodate small inclinations in loading; larger misalignments should be compensated with spherical seats. Because hydraulic cells are sensitive to temperature changes, non-hydraulic cells (e.g. VH and ANCLO) are better suited to applications with significant temperature fluctuations.
Reach out and say hi
Specifications
Technical specifications
- Accuracy
- ±1% F.S.
- Operating temperature
- -20 to +60°C
- Overload
- 1.2 × F.S.
- Capacity options
- 250, 500, 750, 1000, 1500, 2000 kN
- Cell diameter (A)
- 35-135 mm, depending on capacity
- Overall length (C)
- 144-288 mm, depending on capacity
- Cell thickness
- 28-30 mm, depending on capacity
- Distribution plate thickness
- 30-65 mm, depending on capacity
- Protective housing
- 70 x 115 x 162 mm high
