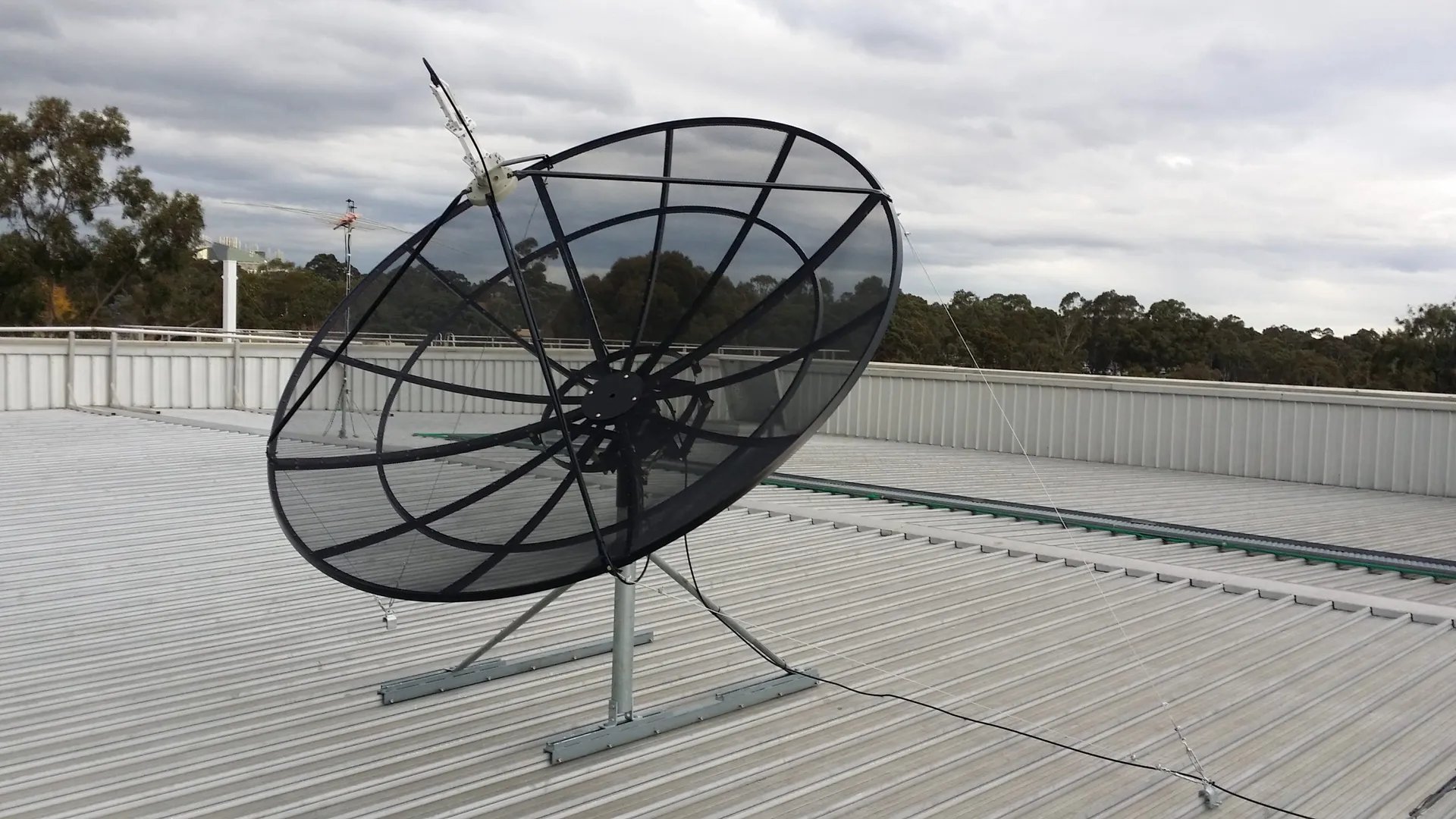

HIMAWARIcast Antenna and Display System
The HIMAWARIcast Antenna and Display System is an eTelecast ground station that receives, processes and displays Himawari-8 satellite meteorological data, generating a new full-disk image every 10 minutes.
- Refresh interval
- 10 minutes (full-disk earth image)
- Frequency bands
- Ku-Band and C-Band, DVB / DVB-S2
- Image compatibility
- Same band count and spatial resolution as MTSAT HRIT/LRIT
Overview
In detail
How it works
The eTelecast HIMAWARIcast ground station provides the hardware and updated software needed to receive, process and display Himawari-8 data, which took over dissemination from the older MTSAT system. The receiving hardware supports both Ku-Band and C-Band DVB and DVB-S2 transmissions.
Data output
HIMAWARIcast generates a new full-disk earth image every 10 minutes, a much higher observation frequency than the 60-minute earth disk of the MTSAT system it replaced. It provides this imagery with the same number of bands and the same spatial resolution as the MTSAT HRIT/LRIT services.
Software
Client-side datacasting is handled by separate KenCast Professional Fazzt client software.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Refresh interval
- 10 minutes (full-disk earth image)
- Frequency bands
- Ku-Band and C-Band, DVB / DVB-S2
- Image compatibility
- Same band count and spatial resolution as MTSAT HRIT/LRIT
- Client software
- KenCast Professional Fazzt (separate)
