Groundview 1200 Borehole Camera
The Groundview 1200 is a portable borehole and shaft inspection video system with four interchangeable cameras, including motorised pan-and-tilt heads and a twin-camera dual-view head, for deep downhole and shaft inspections.
- Camera diameter options
- 45 mm, 55 mm, 65 mm (pan-and-tilt heads)
- Camera options
- 4 interchangeable cameras incl. twin dual-view head (down & side) and optional slim dual-view camera
- Video capture
- USB, via shared control module
Overview
In detail
How it works

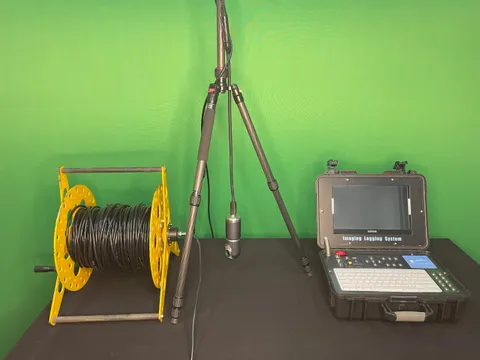

The system transmits signals over very long cable runs and is controlled by the same control module used across the Groundview series. The module displays and captures footage to USB, includes a full onscreen keyboard for typed notes, and a microphone for verbal commentary.
Camera options
Four interchangeable video cameras are available, including motorised pan-and-tilt heads in three diameters (45 mm, 55 mm and 65 mm), a twin-camera dual-view head (down and side view), and an optional slim dual-view camera.
Deployment

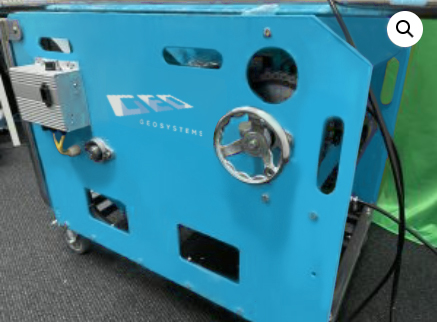

The hand-winch model is robust, portable and suited to commercial use. It is used for deep downhole and shaft inspections: checking casing integrity, lost equipment recovery, verifying downhole pump operation, locating contaminants, confirming downhole instrumentation installations, and search and rescue in wells, bores, groundwater boreholes, mine shafts and open water.
Reach out and say hi
Specifications
Technical specifications
- Camera diameter options
- 45 mm, 55 mm, 65 mm (pan-and-tilt heads)
- Camera options
- 4 interchangeable cameras incl. twin dual-view head (down & side) and optional slim dual-view camera
- Video capture
- USB, via shared control module
- Controls
- Full onscreen keyboard + microphone for commentary
- Winch
- Manual hand winch, portable
