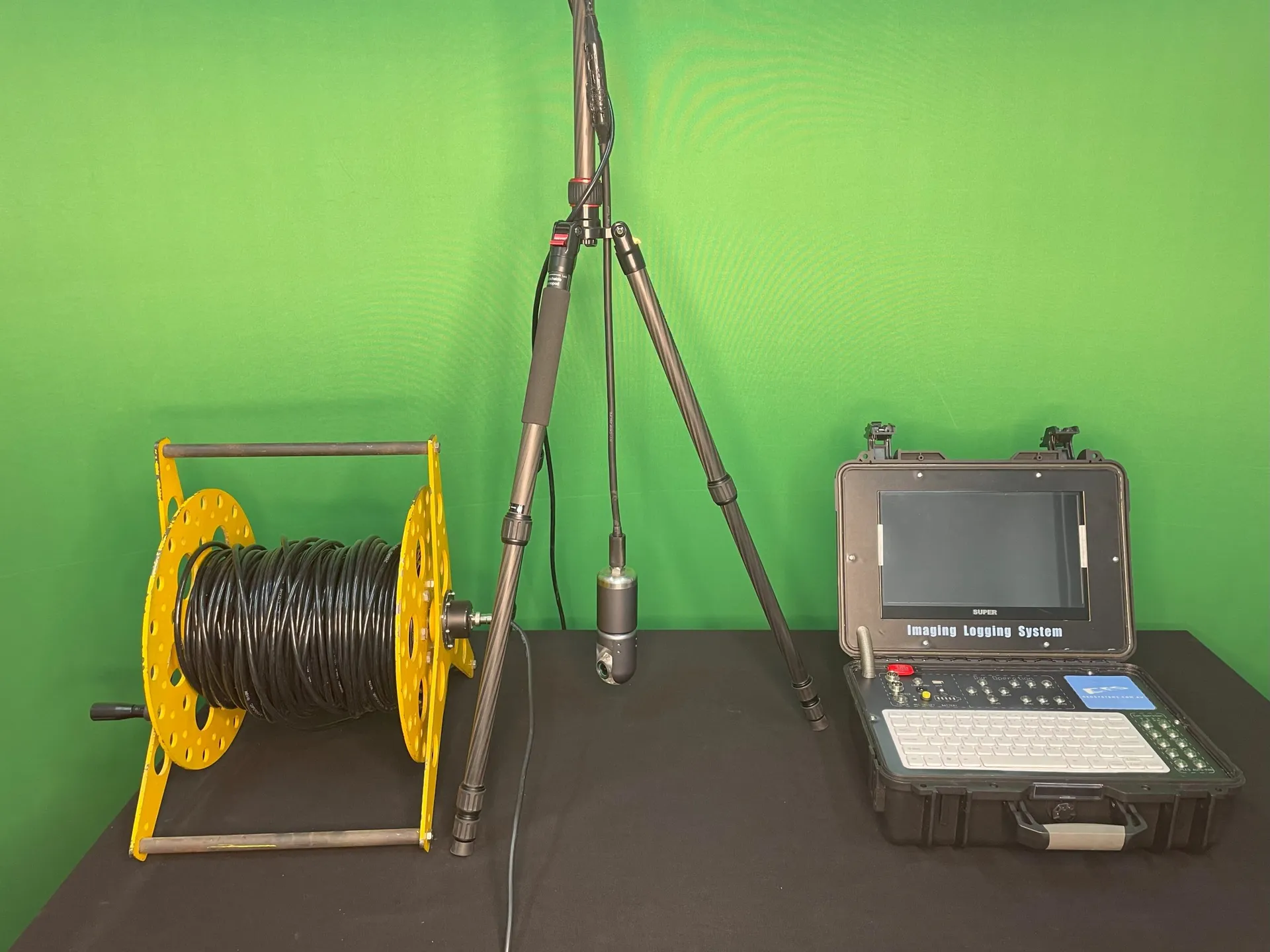

Groundview 100 Borehole Camera
The Groundview 100 is a portable borehole video inspection system with a hand winch and an interchangeable pan-and-tilt camera, used to inspect wells, bores, groundwater boreholes, mine shafts and open water.
- Camera diameter options
- 45 mm, 55 mm, 65 mm
- Video capture
- USB, via shared control module
- Controls
- Full onscreen keyboard + microphone for commentary
Overview
In detail
How it works
The system pairs a small pan-and-tilt camera with a shared control module used across the Groundview range. The module displays live HD footage and captures it to USB, with a full onscreen keyboard for typed notes and a built-in microphone for verbal commentary.
Camera options
The pan-and-tilt camera head is available in three diameters (45 mm, 55 mm and 65 mm) to suit different borehole sizes.
Deployment
The hand-winch model is robust and portable, suited to commercial use. Typical applications include checking casing integrity, lost equipment recovery, verifying downhole pump operation, locating contaminants, confirming downhole instrumentation installations, and search and rescue in wells, bores, groundwater boreholes, mine shafts and open water.
Reach out and say hi
Specifications
Technical specifications
- Camera diameter options
- 45 mm, 55 mm, 65 mm
- Video capture
- USB, via shared control module
- Controls
- Full onscreen keyboard + microphone for commentary
- Winch
- Manual hand winch, portable
