Glare Screen Kit

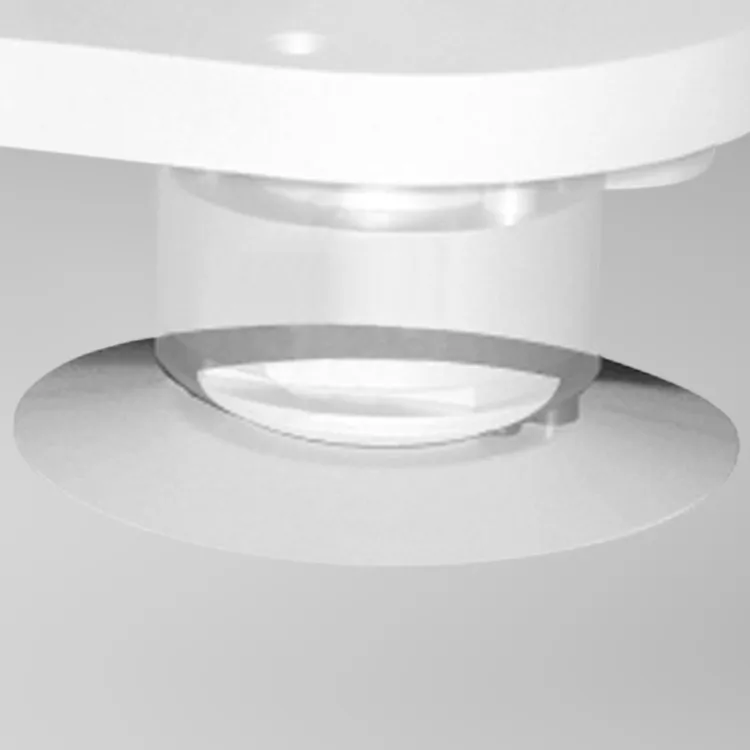

Glare screen kit for downward facing pyranometers mounted on an albedo/net radiation mounting plate. The glare screen has an angle of 5° and is fitted to the pyranometer to prevent direct illumination of the domes by the sun at sunrise and sunset.
- Compatibility
- CMP6-CMP22 and SMP6-SMP22 pyranometers
- Glare screen angle
- 5°
- Mounting
- Horizontal downward facing pyranometers on an albedo/net radiation mounting plate
Overview
In detail
When it's needed
This glare screen kit is needed when creating a horizontal albedometer or a net radiometer. The glare screen has an angle of 5° and is fitted to the pyranometer to prevent direct illumination of the domes by the sun at sunrise and sunset.
Compatibility
The kit is for CMP6-CMP22 and SMP6-SMP22 pyranometers. For downward facing instruments equipped with a CVF4 ventilation unit, a special Glare Screen Kit (Pn 0305725) is offered.
Installation notes
Do not use the Glare Screen Kit when installing a tilted downward facing pyranometer, e.g. in the same plane as the PV modules. Also do not install the normal sunscreen when installing the pyranometer facing downwards.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Compatibility
- CMP6-CMP22 and SMP6-SMP22 pyranometers
- Glare screen angle
- 5°
- Mounting
- Horizontal downward facing pyranometers on an albedo/net radiation mounting plate
- CVF4 ventilation version
- Special Glare Screen Kit (Pn 0305725)
