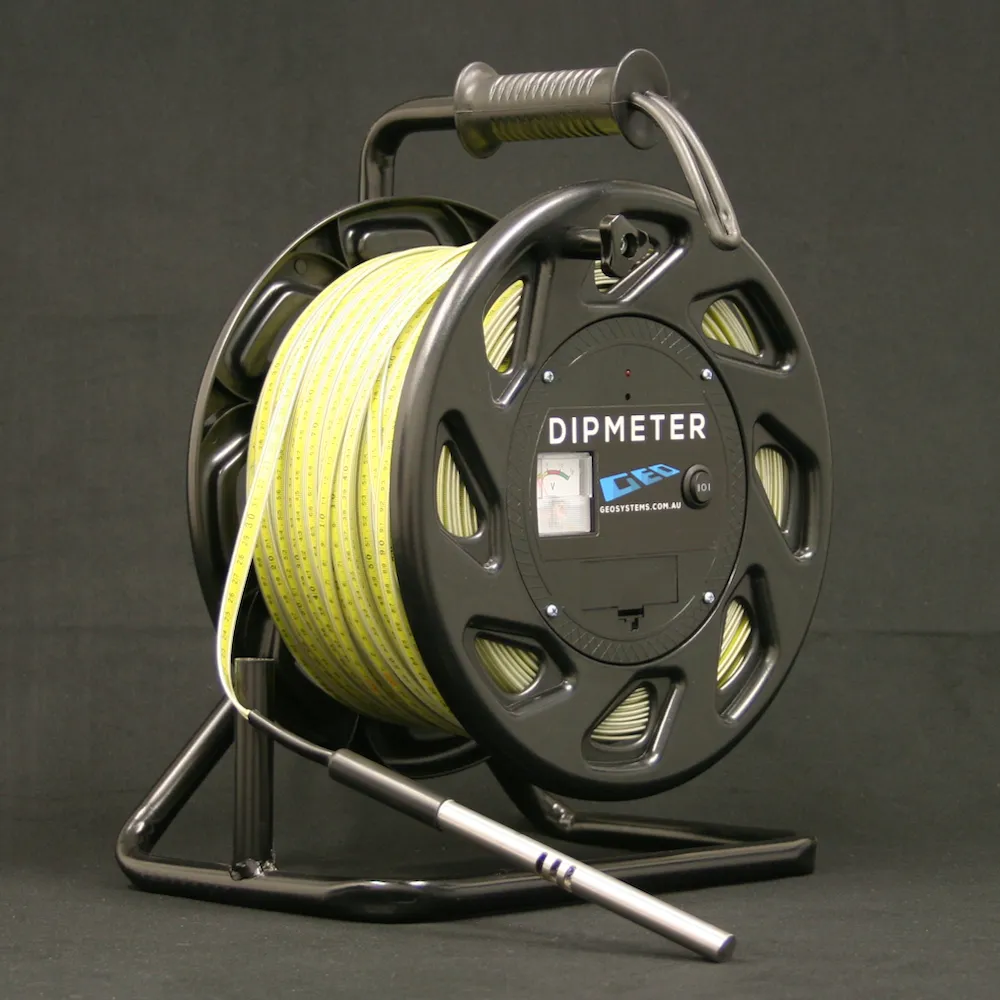

Dipmeter Water Level Meter
The Geosystems Dipmeter is a water level indicator with a stainless steel probe that reads the depth to water in boreholes, standpipes or observation wells via an audible and visible alarm.
- Range
- 30m to 200m standard stock, up to 500m special order
- Supply
- 9V battery (replaceable, PP3)
- Probe diameter
- 14 mm
$602.00
Prices include GST · Shipping calculated at checkout
Overview
In detail
How it works
A stainless steel probe on a flat steel survey tape is lowered down an open bore until it contacts the water surface, completing a circuit that triggers an audible and visible alarm; the operator then reads the depth from the tape at the collar. The probe includes a sensitivity control to prevent false readings from dripping water.
The tape is stretch-resistant steel, enamelled yellow and marked in red (metres) and black (cm, mm), with a clear polyethylene coating and stainless steel conductors for corrosion resistance.
What's included
Supplied on a plastic cable reel (430 x 320 x 200 mm) with an inbuilt, removable indicator unit featuring an off/on switch and battery test button, powered by a replaceable 9V (PP3) battery. Available in 30 m (2.75 kg), 50 m (3 kg), 100 m (4 kg), 200 m (5 kg) and 300 m (8 kg) tape lengths.
Reach out and say hi
Specifications
Technical specifications
- Range
- 30m to 200m standard stock, up to 500m special order
- Supply voltage
- 9V battery (replaceable, PP3)
- Probe diameter
- 14 mm
- Probe material
- Stainless steel, PTFE (Teflon)
- Tape
- Steel, yellow enamelled, marked in red (m) and black (cm, mm)
- Weight
- 2.75 kg (30 m) to 8 kg (300 m), by tape length
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the Dipmeter Water Level Meter — no login, no paywall.
Related
Often specified alongside
Geosystems

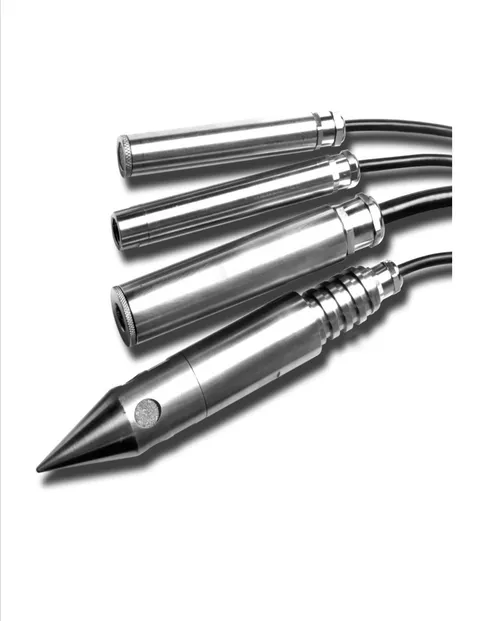

Vibrating Wire Piezometer - VWP
- Range
- 0.0352, 0.0702, 0.2, 0.35, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7 MPa
- Accuracy
- ±0.1%
- Linearity
- < ±0.5% F.S.
Geosystems

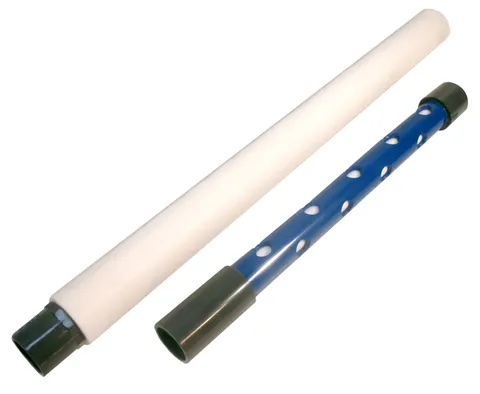

Standpipe Piezometer CP1, CP15
