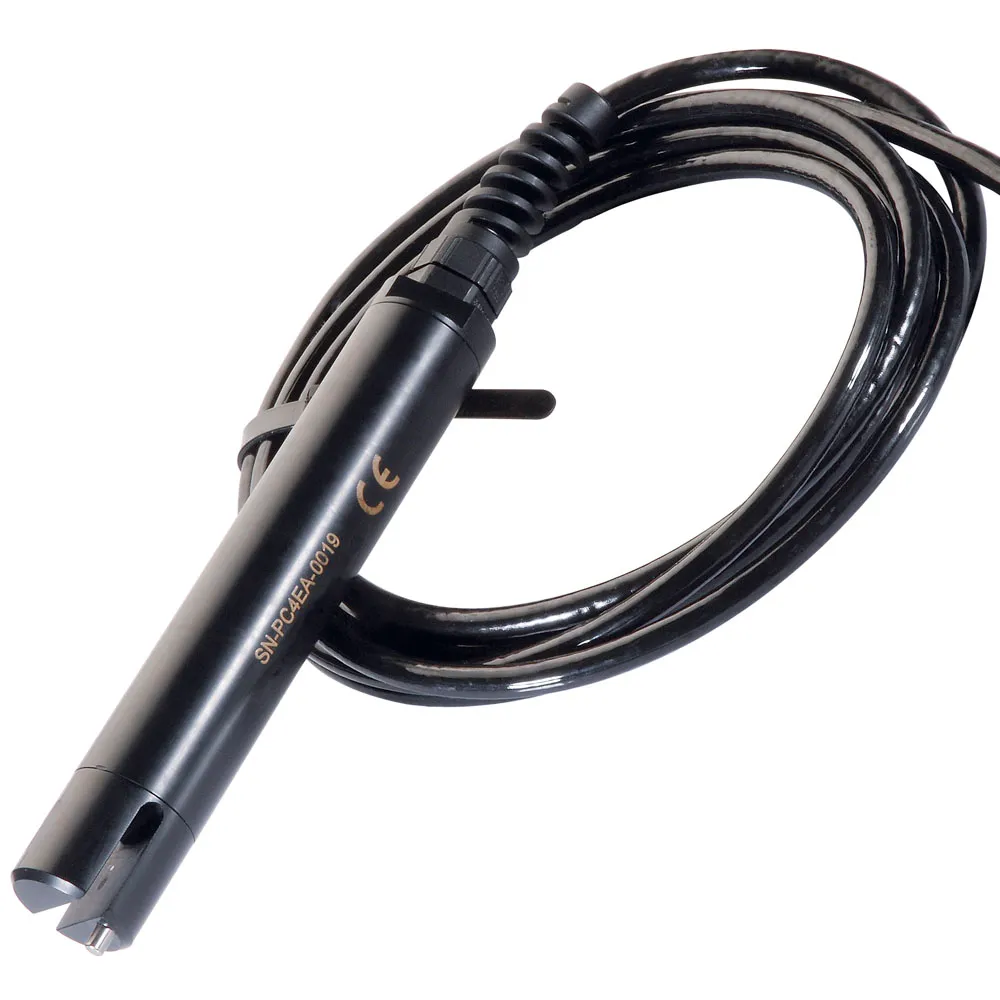

Digital Salinity EC sensor
This EC sensor uses contact measurement for wide range and accuracy. The measurement range is zero to 200, 2000, 20000 or 200,000 µS/cm with an accuracy of ±1% of full-scale range. A 0-50°C temperature sensor is integrated into the sensor.
- Output
- Modbus RS-485 or SDI-12
- Ingress
- IP68 (waterproof)
- Measurement principle
- Contact measurement
Overview
In detail
Connectivity
This digital sensor integrates a transmitter that collects, analyses and transmits data to any display units, data loggers or controllers fitted with Modbus RS-485 or SDI-12 inputs. These sensors are compact, robust and waterproof (IP68) in order to be adaptable to any field or application, as either handheld or fixed units.
Smart sensor
A smart sensor that stores calibration and history data within the sensor.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Measurement principle
- Contact measurement
- Conductivity ranges
- 0-200, 2000, 20000 or 200,000 µS/cm
- Accuracy
- ±1% of full-scale range
- Integrated temperature sensor
- 0-50°C
- Output
- Modbus RS-485 or SDI-12
- Ingress protection
- IP68 (waterproof)
Related
Often specified alongside
- Range
- 0-100,000 µS/cm ±2%
- Output
- SDI-12 and 4-20mA standard; RS232 on 12-pin variant
- Supply
- 10-18 V DC, <80 mA
