d-Exto

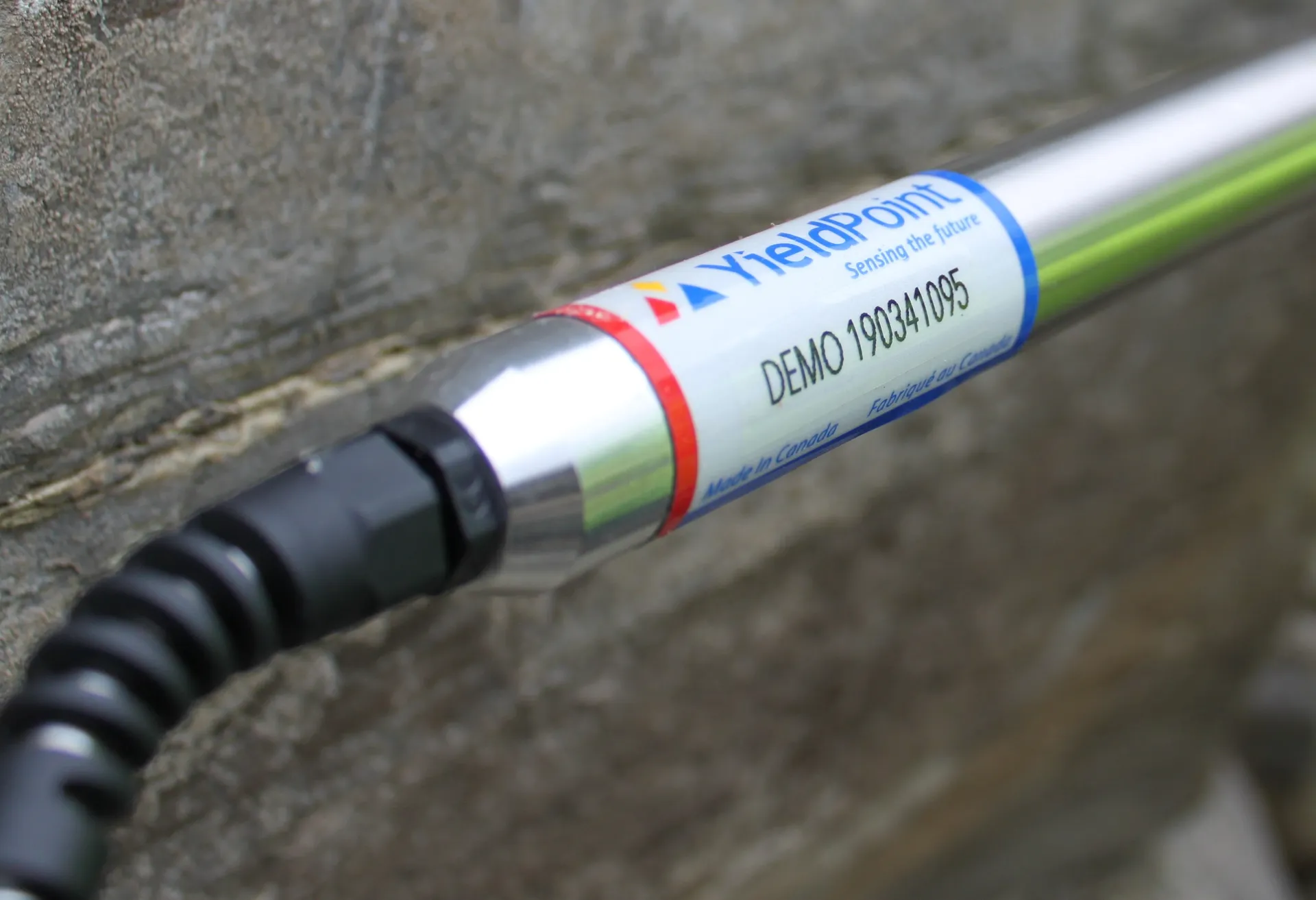

The d-EXTO is a Yieldpoint fully integrated, pre-assembled multi-point borehole extensometer that combines a traditional multi-rod design with digital signal processing, using up to six Linear Variable Induction Transducers (LVIT) and an on-board digital temperature sensor.
- Range
- 125, 150 (standard), 200 or 250 mm displacement
- Output
- RS485, up to 500 m over 2 x twisted pair; asynchronous serial 9600,8,N,1 ASCII encoded
- Dimensions
- 25 mm diameter, fits a 50 mm borehole
Overview
In detail
How it works
Up to six Linear Variable Induction Transducers (LVIT) plus an on-board digital temperature sensor give displacement accuracy typically of 0.5% F.S. below 10 m and 1% linearity above 10 m, depending on the distance between the anchor point and the head.
Connectivity
Output is RS485, transmissible up to 500 m over two twisted pairs, as an asynchronous serial signal (9600, 8, N, 1) that is ASCII-encoded with values and units transmitted.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 125, 150 (standard), 200 or 250 mm displacement
- Dimensions
- 25 mm diameter, fits a 50 mm borehole
- Anchor points
- Up to 6, over lengths up to 30 m
- Accuracy
- Typically 0.5% F.S. (<10 m) and 1% linearity (>10 m)
- Operating temperature
- -40 to 125 °C
- Output
- RS485, up to 500 m over 2 x twisted pair; asynchronous serial 9600,8,N,1 ASCII encoded
Related
Often specified alongside
ESS Earth

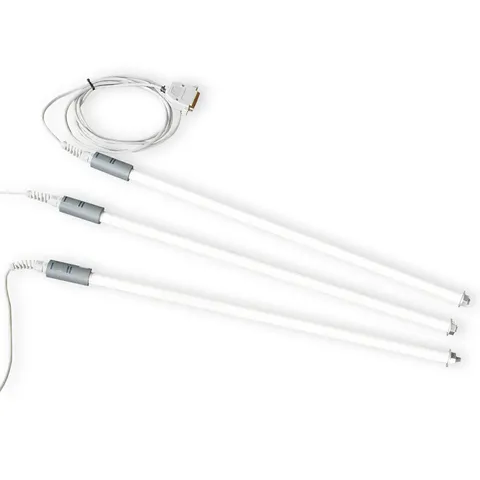

Resistance Wire Extensometer RWE
- Application
- Underground hard rock and coal mine displacement monitoring
- Monitoring points
- Pillars, stope walls, roof
Geosystems

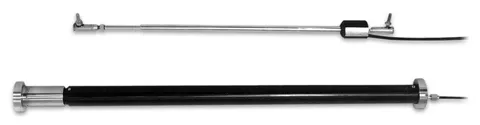

JM Series Vibrating Wire Jointmeter
