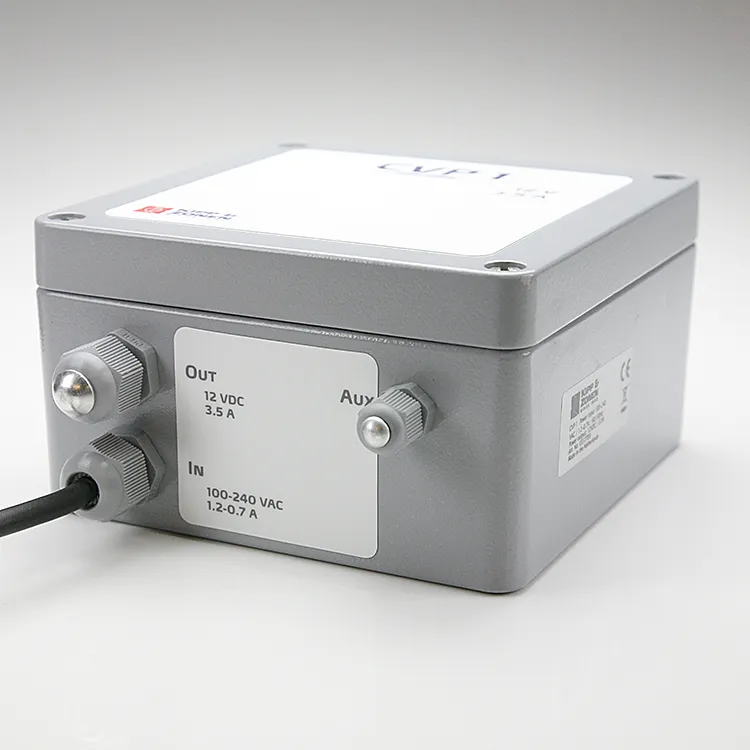

CVP1 Power Supply
CVP1 is a weatherproof heavy duty power supply with wide range AC input and a fully protected 12 VDC output at up to 3.5 A. It is suitable for powering ventilation units and other equipment, such as data loggers, and is supplied pre-wired with 5 m AC cable.
- Supply
- 100 - 240 VAC / 50 - 60 Hz
- Power output
- 12 VDC / 3.5 A
- Power rating
- > 40 W continuous
Overview
In detail
Protection and construction
CVP1 has a watertight enclosure (IP 65) and durable construction, with input, output and temperature protection and a power rating of more than 40 W continuous.
CVP1 LAS MkII version
CVP1 LAS MkII is a special version for use with the Kipp & Zonen Large Aperture Scintillometer (LAS MkII). It is pre-wired with 10 m cable fitted with the waterproof connector for the LAS MkII transmitter or receiver. It supplies power to the LAS MkII and has a pass-through facility for the LAS MkII signal connections.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
- Part number
Specifications
Technical specifications
- Power supply
- 100 - 240 VAC / 50 - 60 Hz
- Power output
- 12 VDC / 3.5 A
- Power rating
- > 40 W continuous
- Enclosure
- Watertight (IP 65)
- Protection
- Input, output and temperature protection
- Operational temperature range
- -20 to +50 °C
- AC cable
- Pre-wired, 5 m
